| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | High Sensitivity Cleanroom Electronic Particle Counter | Flow Rate: | 50LPM |
|---|---|---|---|
| Sensitivity: | 0.5 | Light Source: | Laser Diode |
| N.W: | 8.4KG | Warranty Ti,e: | 1 Year |
| High Light: | 0.5um Electronic Particle Counter,50LPM Electronic Particle Counter,Y09-550 Electronic Particle Counter |
||

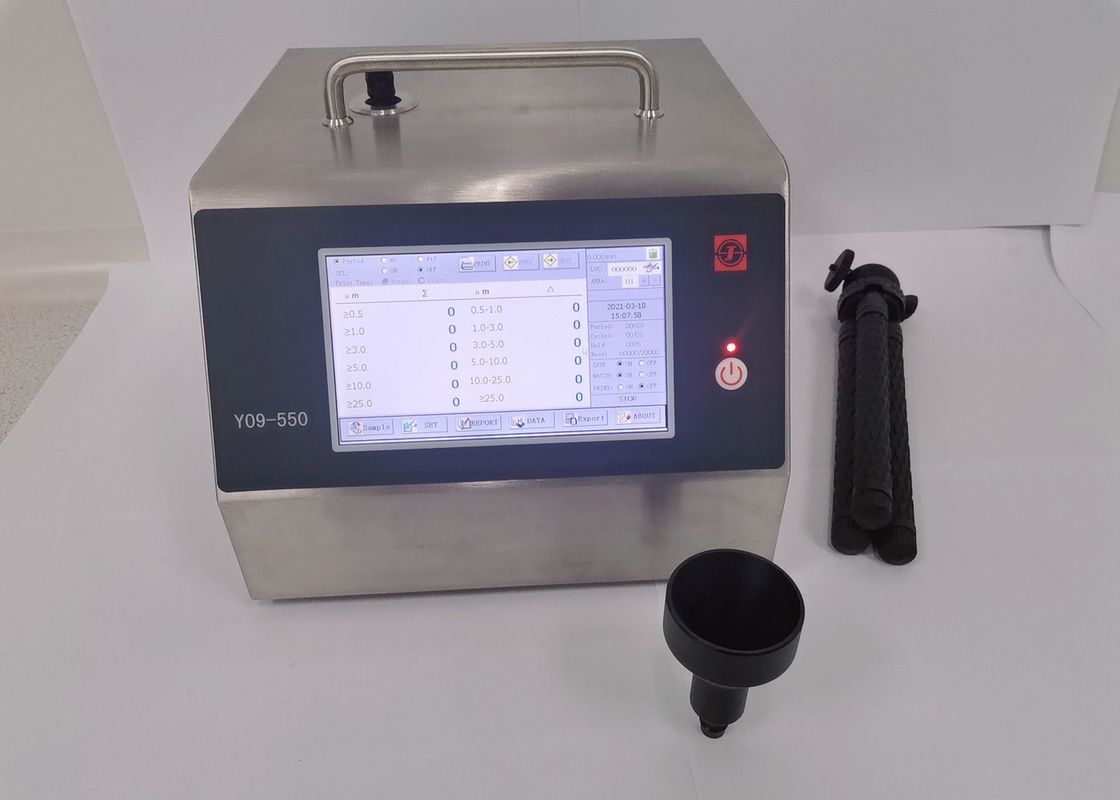

High Sensitivity 0.5μm Cleanroom Electronic Particle Counter
Applications of Air Particle Counter
¯ Monitor and verify cleanrooms
¯ Test filters in place
¯ Track down particle sources
¯ Monitor :
Micro-electronics
Semiconductor manufacture
Food processing areas
Pharmacy and Biochemistry
Cosmetics product
Indoor Air Quality
Aerospace Assembly
Medical Device Assembly Cleanroom Laundries
Specification of Air Particle Counter
| Model | Y09-550 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
