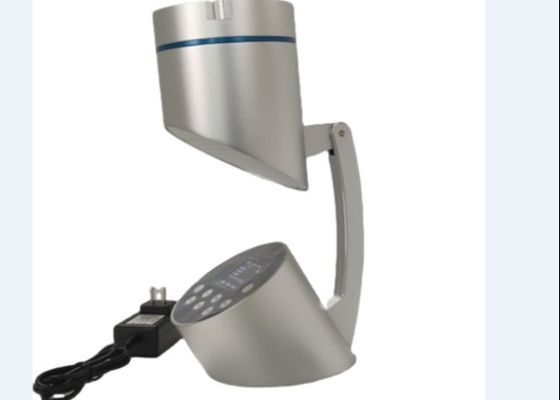

Biological 100L/Min Flow Microbial Air Sampler SUS316 FKC-1B
|
Biological 100L/Min Flow Microbial Air Sampler SUS316 FKC-1B
| Brand Name: | Sujing |
| Model Number: | FKC-IB |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
100L/Min Flow Microbiological Air Sampler
,0.38m/s Microbiological Air Sampler
,SUS316 Biological Air Sampler
High Volume Biological 100L FKC-1B Microbial Air Sampler
FKC-1B High-effective Microbial Air Sampler is a high-effective, lacunaris and inhalational bacteria sampler. It is designed by the two theories of particles-impact and equal-flow-sampling. It can sample directly, and the sampling wind-speed and the clean-indoor wind-speed are same, so it can accurately reflect the microorganisms concentration of your clean-room.When sampling, planktonic bacterias with air highly-speed thrill through an ventage, and then they impinge on the surface of agar in the culture medium. When these microbes live are been cultivating, they will be dynamic-hydrated, and then they are high-speed flowing. Sequentially, we can procure results quickly.
Features of microbial air sampler
- Sampling inlet head adopts SUS316 with high precision machining, up/down diameters of microholes in thehead are same to ensure best air flow and good bacteria capture effect.
- Optional printer to compare data with culture dish on site
- Optional compressed air sampling accessory to measure no. of planktonic bacteria in compressed air.
- Convenient operation: easy to change culture dish (φ90*15mm) by removing sampling inlet head.
- Optional wireless controller
- Complete after-sales service: warranty for 1 year, free-charge for flow rate calibration, free-charge for software updating
Specification of microbial air sampler
| Sampling flow | 100L / min |
| The sampling port flow rate | 0.38 m/s |
| sampling volume | 0.001-9.999m³ |
| Standard universal Petri dish | Φ90 * 15 |
| Power | DC16.8V |
| Dimensions | Φ120*325 |
| Weight | 3kg |
| Environmental | Temperature: 10--35 ℃; Relative humidity: 10--90% RH; Atmospheric Pressure: 80-110kPa |
| Maximum dust concentration | 100 000 000 / m³@0.5μm or 0.2mg / m³ |
Environmental parameters of microbial air sampler
1. In order to ensure production quality and prevent pollution of the production environment, production area space must meet specified environmental standards.
2. The particles and microorganisms in the area is the main control object, and also need to deal with the environmental temperature, humidity, fresh air volume, differential pressure, light, sound level, and other parameters.
3. There are 4 cleanliness classes of pharmaceutical manufacturing cleanrooms and clean zones.
Accessories of microbial air sampler
1. AC adapter
2. Remote control
3. Petri dish (Φ90×12) 2pcs
Video
