SUS316 Head Microbial Air Sampler For Pharmaceutical Room Microbe Collection

SUS316 Head Microbial Air Sampler For Pharmaceutical Room Microbe Collection
SUS316 Head Microbial Air Sampler For Pharmaceutical Room Microbe Collection

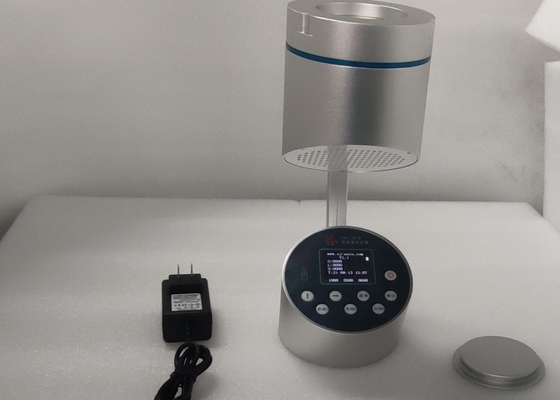

Large Image :  SUS316 Head Microbial Air Sampler For Pharmaceutical Room Microbe Collection

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: FKC-IB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Microbial Air Sampler For Microbe Collection In Pharmaceutical Room Sampling Flow: 100L/min
The Sampling Port Flow Rate: 0.38 M/s Power: DC16.8V
Warranty Time: 1 Year Environmental: Temperature: 10--35 ℃
High Light:

SUS316 Head Microbial Air Sampler

,

Microbe Collection Microbial Air Sampler

,

0.38 M/S Microbial Air Sampler

  Microbial Air Sampler For Microbe Collection In Pharmaceutical Room



Application:



Widely used in pharmaceutical company, milk product plant, clinical operation room, fermentation industry et al, where microbial contamination need to be strictly monitored and controlled. Also it is applicable in institutes that need study the air microbial condition.



Technical Specifications

Collection Efficiency: Physical efficiency was determined using Bacillus subtilis spores and a membrane filter reference method (BS EN ISO 14698-1:2003 Annex B).



Features of microbial air sampler

  •  Sampling inlet head adopts SUS316 with high precision machining, up/down diameters of microholes in thehead are same to ensure best air flow and good bacteria capture effect.
  •  Optional printer to compare data with culture dish on site
  •  Optional compressed air sampling accessory to measure no. of planktonic bacteria in compressed air.
  •  Convenient operation: easy to change culture dish (φ90*15mm) by removing sampling inlet head.
  • Optional wireless controller
  • Complete after-sales service: warranty for 1 year, free-charge for flow rate calibration, free-charge for software updating

Specification of microbial air sampler



Sampling flow 100L / min
The sampling port flow rate 0.38 m/s
sampling volume 0.001-9.999m³
Standard universal Petri dish Φ90 * 15
Power DC16.8V
Dimensions Φ120*325
Weight 3kg
Environmental Temperature: 10--35 ; Relative humidity: 10--90% RH; Atmospheric Pressure: 80-110kPa
Maximum dust concentration 100 000 000 / m³@0.5μm or 0.2mg / m³



Environmental parameters of microbial air sampler
1. In order to ensure production quality and prevent pollution of the production environment, production area space must meet specified environmental standards.
2. The particles and microorganisms in the area is the main control object, and also need to deal with the environmental temperature, humidity, fresh air volume, differential pressure, light, sound level, and other parameters.
3. There are 4 cleanliness classes of pharmaceutical manufacturing cleanrooms and clean zones.



Accessories of microbial air sampler

1. AC adapter

2. Remote control

3. Petri dish (Φ90×12) 2pcs
