Portable Compressed Air Microbial Sampler With SUS316 Head

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

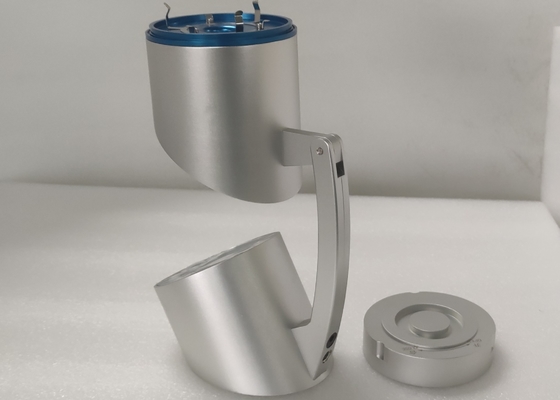

Portable Compressed Air Microbial Sampler With SUS316 Head

Portable Compressed Air Microbial Sampler With SUS316 Head
Portable Compressed Air Microbial Sampler With SUS316 Head

Large Image :  Portable Compressed Air Microbial Sampler With SUS316 Head

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: FKC-IB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Portable Microbiologial Biologiques Compressed Air Microbial Sampler Sampling Flow: 100L/min
The Sampling Port Flow Rate: 0.38 M/s Power: DC16.8V
Warranty Time: 1 Year Environmental: Temperature: 10--35 ℃
High Light:

Compressed Air Microbial Sampler

,

SUS316 Head Microbial Sampler

,

Portable Microbial Sampler

  Portable Microbiologial Biologiques Compressed Air Microbial Sampler



This microbial air sampler works based on Andersen collision principle. Air is aspirated (at a fixed speed for variable times) through small holes in the instrument's head. The resulting laminar air flow is directed onto the surface of an agar plate. At the end of the sampling cycle, the plate is removed and incubated and the visible colonies are then counted for an assessment of the level of contamination.



Features of microbial air sampler

  •  Sampling inlet head adopts SUS316 with high precision machining, up/down diameters of microholes in thehead are same to ensure best air flow and good bacteria capture effect.
  •  Optional printer to compare data with culture dish on site
  •  Optional compressed air sampling accessory to measure no. of planktonic bacteria in compressed air.
  •  Convenient operation: easy to change culture dish (φ90*15mm) by removing sampling inlet head.
  • Optional wireless controller
  • Complete after-sales service: warranty for 1 year, free-charge for flow rate calibration, free-charge for software updating

Specification of microbial air sampler



Sampling flow 100L / min
The sampling port flow rate 0.38 m/s
sampling volume 0.001-9.999m³
Standard universal Petri dish Φ90 * 15
Power DC16.8V
Dimensions Φ120*325
Weight 3kg
Environmental Temperature: 10--35 ; Relative humidity: 10--90% RH; Atmospheric Pressure: 80-110kPa
Maximum dust concentration 100 000 000 / m³@0.5μm or 0.2mg / m³



Environmental parameters of microbial air sampler
1. In order to ensure production quality and prevent pollution of the production environment, production area space must meet specified environmental standards.
2. The particles and microorganisms in the area is the main control object, and also need to deal with the environmental temperature, humidity, fresh air volume, differential pressure, light, sound level, and other parameters.
3. There are 4 cleanliness classes of pharmaceutical manufacturing cleanrooms and clean zones.



Accessories of microbial air sampler

1. AC adapter

2. Remote control

3. Petri dish (Φ90×12) 2pcs





Portable Compressed Air Microbial Sampler With SUS316 Head 0
