Y09-PG310A Calibration System For Laser Air Particle Counter

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-PG310A
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Aerosol Concentration: ≤5% Flow Rate Stability: ±5% Per 8 Hours
Air Source: Ultra-quiet External Air Pump
High Light:

Y09-PG310A Calibration System

,

28.3L Particle Counter Calibration System

,

0.3μm Particle Counter Calibration Services


Product Description

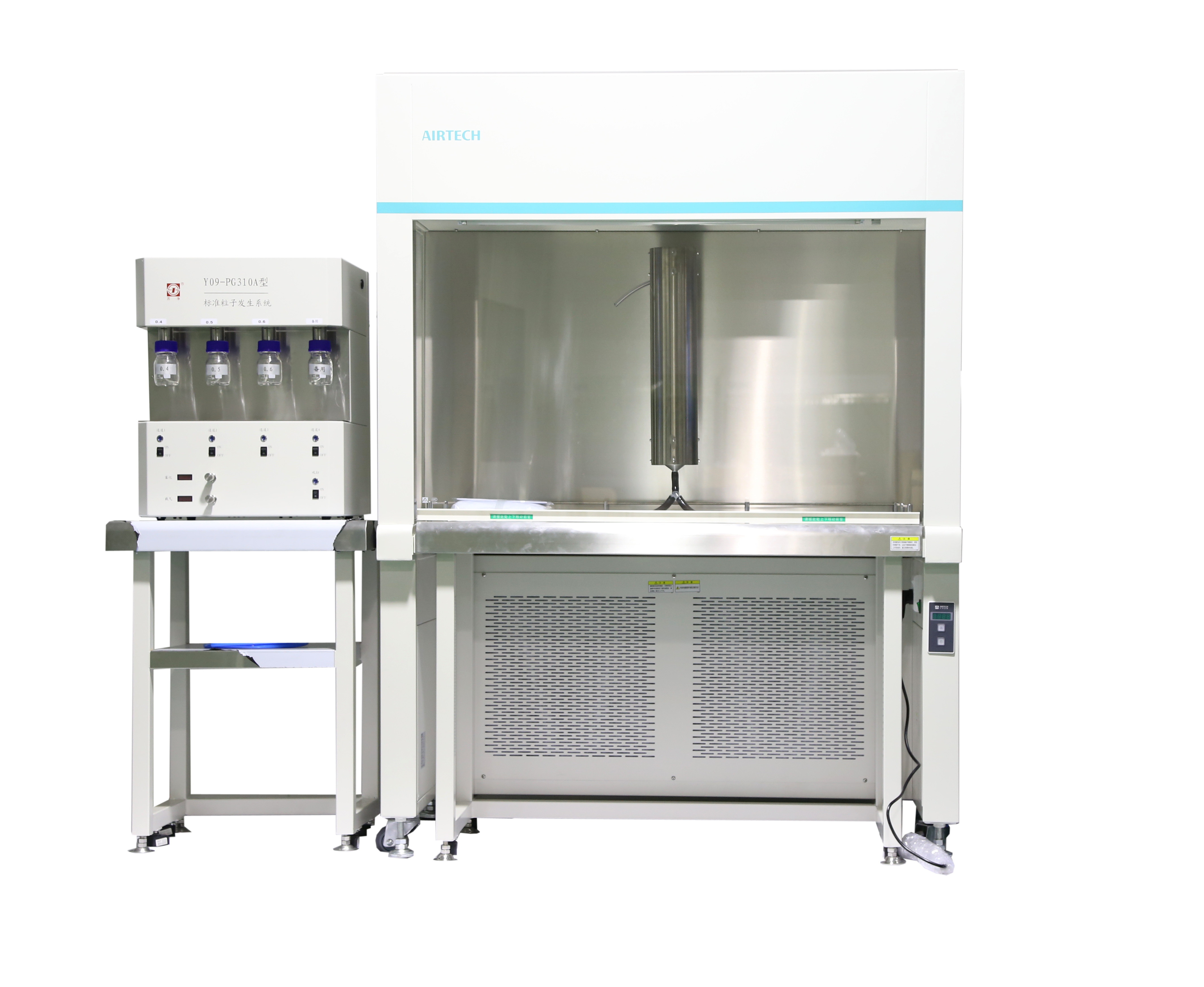

Y09-PG310A Calibration System For Laser Air Particle Counters



The system is based on "dust particle counter performance test method" GB / T6167-2007 and "dust particle counter calibration specification" JJF1190-2008 and other national standards, combined with our experience of production and calibration of dust particle counters.



Technical parameters of particle counter calibration system

Aerosol concentration 4000-100000 particles/28.3L
Aerosol size  0.3μm /0.4 μm/0.5μm/0.6μm
Flow rate stability ±5% per 8 hours
Aerosol concentration ≤5%
Size channels 4
Air source  ultra-quiet external air pump
shell Stainless steel spray cabinet paint
Outside dimension (air source, reference particle counter excluded) (1300+500)W*825L*1775H(mm³)
Gross weight(air source, reference particle counter excluded)

240kg+40kg



Y09-PG310A Calibration System For Laser Air Particle Counter 0

Company Information
Y09-PG310A Calibration System For Laser Air Particle Counter 1

Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.





Sujing instrument is an ISO 9001:2015 Registered Company
