Portable Air Particle Counter Calibration Services Y09-PG310B

Portable Air Particle Counter Calibration Services Y09-PG310B
Portable Air Particle Counter Calibration Services Y09-PG310B

Large Image :  Portable Air Particle Counter Calibration Services Y09-PG310B

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-PG310A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-PG310B Portable Air Particle Counter Calibration System Clean Bench Size: 650*535*835mm3
Clean Bench Weight: 60kg Host Size: 390*289*214mm3
Host Weight: 7kg Maximum Power Consumption: 250W (Clean Bench) +220W(Generator)
High Light:

Y09-PG310B Particle Counter Calibration Services

,

250W Particle Counter Calibration Services

,

AC220V Particle Counter Calibration Services

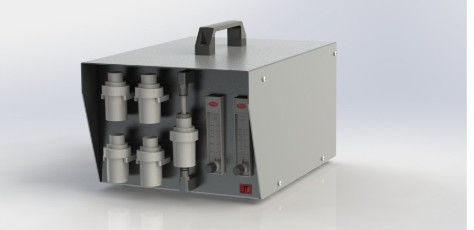

Y09-PG310B Portable Air Particle Counter Calibration System



Standard aerosol generating system is complete system that can produce standard particles of certain concentration for laser particle counter calibration. Air source provide clean air for system, clean air go into the atomizing nozzles, with injecting effect, the solution ejected from the atomizing nozzle, will be atomizing to droplet, droplet will mix with another clean and dry air, form a mono-dispersed aerosol into the dispersion chamber. Laser particle counter sample in the even-mixed aerosol from the sampling tube. Through this system, the counts of the test counter are compared with the reference counter to determine the accuracy.



Technical parameters of particle counter calibration system


Clean bench size 650*535*835mm3
Clean bench weight 60kg
Host size 390*289*214mm3
Host weight 7kg
Maximum power consumption 250W (Clean bench)  +220W(Generator)
Power AC220V
Size 0.4um,0.5um/0.6um
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Working time  6hours
Connector Inner diameter 6 soft tube
Size channel 1
Spare atomizing nozzle 4
