products

Home / Products / Digital Aerosol Photometer /

HEPA Vacuum Cleaner Aerosol Photometer APM-18 With Wireless Printer

Name: HEPA Vacuum Cleaner Aerosol Photometer APM-18 With Wireless Printer
Brand: Suzhou Sujing Automation Equipment corporation limited
SKU: APM-18
Price: 4,000.00 USD
Availability: InStock

Brand Name:	SUJING
Model Number:	APM-18
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	800/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Digital Aerosol Photometer For HEPA Vacuum Cleaner

Reagent Settings:

PAO-4, DOP, Ondina, Mineral Oil, Paraffin

Weight:

Weight

Output:

Wireless Printer, USB Interface

Standards Compliance:

NSF 49, IEST, ISO-14644

Light Source:

Solid State, Rated For Life Of Instrument

Packaging Details:

Carton

Supply Ability:

800/per month

Highlight:

HEPA Vacuum Cleaner Aerosol Photometer

operating theatre Aerosol Photometer

Wireless Printer Aerosol Photometer

Product Description

Digital Aerosol Photometer For HEPA Vacuum Cleaner

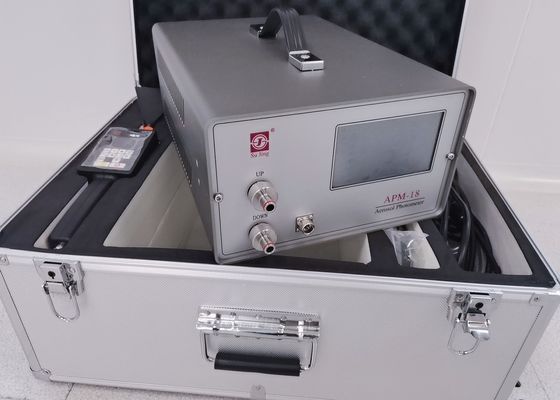

APM-18 digital aerosol photometer is used to test whether there is leakage on HEPA filter. The instrument conforms to related national and industry standard, could realize rapid detection of upstream and downstream concentration detection and real-time display leakage on the host and handheld device, and could find leaking position rapidly and accurately.

Features and Benefits of aerosol photometer

long life laser light source;
high precision photoelectric multiplier tube detection;
can set PAO, DOP and other types of aerosols;

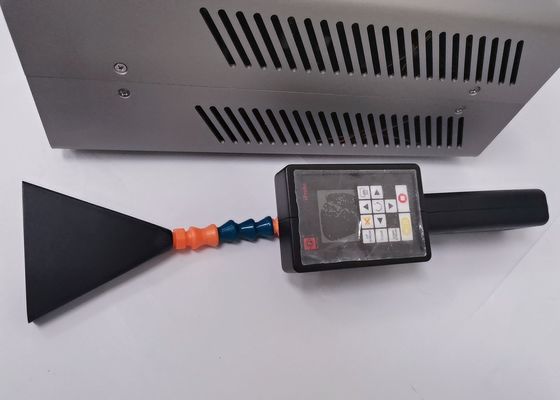

equipped with a dedicated handheld device to achieve control, display and sampling function;
large capacity data storage, real-time data storage;
more than the setting alarm sound and light alarm;
can be obtained by U disk or thermal printer to print historical data;
can print leakage rate and other monitoring data in real time;
through the special software, the sampling data can be imported into PC;
automatic fault detection.

Application of digital aerosol photometer

leakage detection of clean room
VLF bench
biosafety cabinet
glove box
HEPA vacuum cleaner
HVAC system
HEPA filter
negative pressure filtering system
operating theatre
nuclear filter system
collection protect filter

APM-18 photometer Specifications
Dynamic Range	Up to 600 micrograms per liter
Reagent Settings	PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero	Automatically establishes zero reading at startup
Sensitivity	1% of readings ≥0.01% to 100%
Repeatability	0.5% of readings ≥0.01% to 100%
Flow Control	Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source	Solid State, rated for life of instrument
Reporting	Continuous, Summary, and Monitoring modes
Alarm	User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size	260 (W)X160(H)X360(D)
Weight	10Kg
Output	Wireless printer, USB interface
Power	220VAC, 50/60HZ
Standards compliance	NSF 49, IEST, ISO-14644
