HEPA Vacuum Cleaner Digital Photometer APM-18 NSF 49

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: APM-18
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Digital Aerosol Photometer For HEPA Vacuum Cleaner Reagent Settings: PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Output: Wireless Printer, USB Interface Standards Compliance: NSF 49, IEST, ISO-14644
Light Source: Solid State, Rated For Life Of Instrument Reporting: Continuous, Summary, And Monitoring Modes
High Light:

HEPA filter Digital Aerosol Photometer

,

NSF 49 Digital Photometer

,

HEPA Vacuum Cleaner Digital Photometer


Product Description

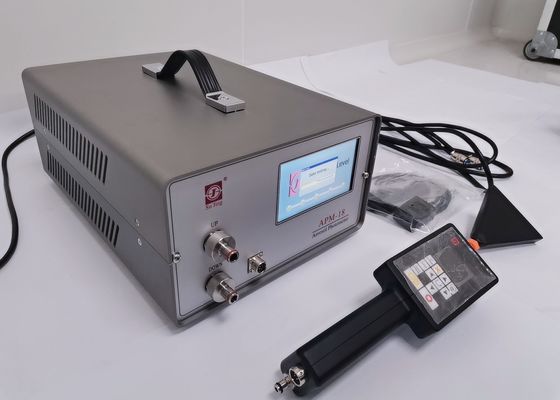

Digital Aerosol Photometer For HEPA Vacuum Cleaner



APM-18 digital aerosol photometer adopts a 7-inch LCD display, which fully absorbs the advantages of the operation interface of internationally renowned brand products, and adds real-time concentration data. It adopts a theme-driven interface and is easy to use aerosol measurement. The sampling speed of the vacuum pump is There are clear displays on the LCD, which are easy to see; for the selected alarm type and alarm point, there are instructions on the menu below the LCD; at the top of the LCD is the information such as connection status, alarm type and report type.​



APM-18 photometer Specifications
Dynamic Range Up to 600 micrograms per liter
Reagent Settings PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero Automatically establishes zero reading at startup
Sensitivity 1% of readings ≥0.01% to 100%
Repeatability 0.5% of readings ≥0.01% to 100%
Flow Control Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source Solid State, rated for life of instrument
Reporting Continuous, Summary, and Monitoring modes
Alarm User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size 260 (W)X160(H)X360(D)
Weight 10Kg
Output Wireless printer, USB interface
Power 220VAC, 50/60HZ
Standards compliance NSF 49, IEST, ISO-14644



Application of digital aerosol photometer

  • leakage detection of clean room
  • VLF bench
  • biosafety cabinet
  • glove box
  • HEPA vacuum cleaner
  • HVAC system
  • HEPA filter
  • negative pressure filtering system
  • operating theatre
  • nuclear filter system
  • collection protect filter



Features and Benefits of aerosol photometer

  • long life laser light source;
  • high precision photoelectric multiplier tube detection;
  • can set PAO, DOP and other types of aerosols;

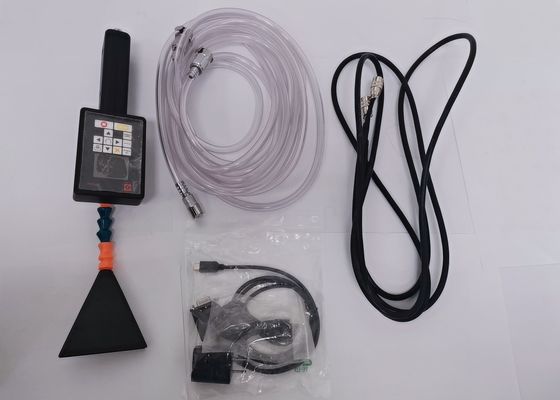

  • equipped with a dedicated handheld device to achieve control, display and sampling function;
  • large capacity data storage, real-time data storage;
  • more than the setting alarm sound and light alarm;
  • can be obtained by U disk or thermal printer to print historical data;
  • can print leakage rate and other monitoring data in real time;
  • through the special software, the sampling data can be imported into PC;
  • automatic fault detection.
