Cleanroom Leakage Detection Digital Aerosol Photometer PAO-4 50HZ

Name: Cleanroom Leakage Detection Digital Aerosol Photometer PAO-4 50HZ
Brand: Suzhou Sujing Automation Equipment corporation limited
SKU: APM-18
Price: 4,000.00 USD
Availability: InStock

Brand Name:	SUJING
Model Number:	APM-18
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	800/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Digital Aerosol Photometer Leakage Detection Of Clean Room

Reagent Settings:

PAO-4, DOP, Ondina, Mineral Oil, Paraffin

Output:

Wireless Printer, USB Interface

Standards Compliance:

NSF 49, IEST, ISO-14644

Light Source:

Solid State, Rated For Life Of Instrument

Reporting:

Continuous, Summary, And Monitoring Modes

Packaging Details:

Carton

Supply Ability:

800/per month

Highlight:

IEST Digital Aerosol Photometer

50HZ Digital Aerosol Photometer

Digital Aerosol Photometer PAO-4

Product Description

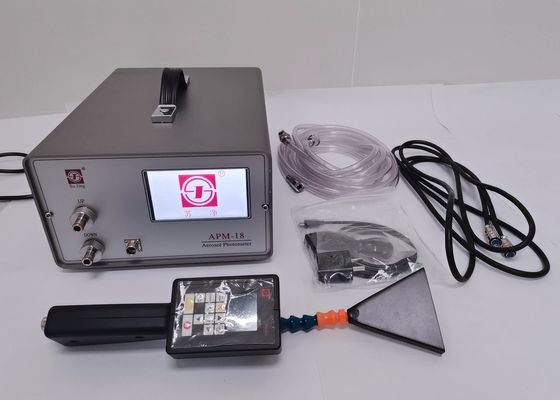

Digital Aerosol Photometer Leakage Detection Of Clean Room

The test results of aerosol photometer is more easily traceable.It has three separate reporting, storage mode, a continuous mode, a print mode (including the content filter to the client location may be preserved by the thermal printer output).

APM-18 photometer Specifications
Dynamic Range	Up to 600 micrograms per liter
Reagent Settings	PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero	Automatically establishes zero reading at startup
Sensitivity	1% of readings ≥0.01% to 100%
Repeatability	0.5% of readings ≥0.01% to 100%
Flow Control	Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source	Solid State, rated for life of instrument
Reporting	Continuous, Summary, and Monitoring modes
Alarm	User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size	260 (W)X160(H)X360(D)
Weight	10Kg
Output	Wireless printer, USB interface
Power	220VAC, 50/60HZ
Standards compliance	NSF 49, IEST, ISO-14644

Application of digital aerosol photometer

leakage detection of clean room
VLF bench
biosafety cabinet
glove box
HEPA vacuum cleaner
HVAC system
HEPA filter
negative pressure filtering system
operating theatre
nuclear filter system
collection protect filter

Features and Benefits of aerosol photometer

long life laser light source;
high precision photoelectric multiplier tube detection;
can set PAO, DOP and other types of aerosols;
equipped with a dedicated handheld device to achieve control, display and sampling function;
large capacity data storage, real-time data storage;
more than the setting alarm sound and light alarm;
can be obtained by U disk or thermal printer to print historical data;
can print leakage rate and other monitoring data in real time;
through the special software, the sampling data can be imported into PC;
automatic fault detection.
