Real Time Leakage Tester Digital Aerosol Photometer DOP PAO

Name: Real Time Leakage Tester Digital Aerosol Photometer DOP PAO
Brand: Suzhou Sujing Automation Equipment corporation limited
SKU: APM-18
Price: 4,000.00 USD
Availability: InStock

Brand Name:	SUJING
Model Number:	APM-18
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	800/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

DOP And PAO Digital Aerosol Photometer Leakage Tester

Reagent Settings:

PAO-4, DOP, Ondina, Mineral Oil, Paraffin

Output:

Wireless Printer, USB Interface

Standards Compliance:

NSF 49, IEST, ISO-14644

Light Source:

Solid State, Rated For Life Of Instrument

Warranty Time:

1 Year

Packaging Details:

Carton

Supply Ability:

800/per month

Highlight:

Digital Aerosol Photometer NSF 49

Leakage Tester Digital Aerosol Photometer

Digital Aerosol Photometer DOP

Product Description

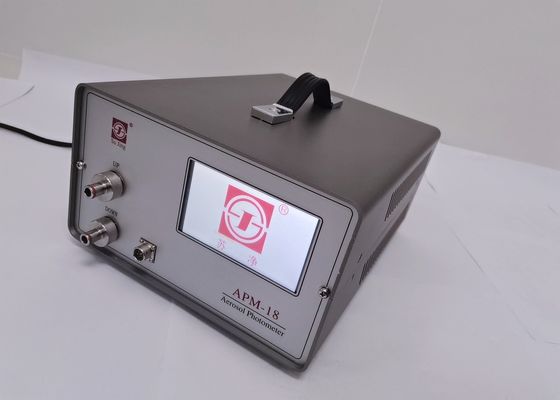

DOP And PAO Digital Aerosol Photometer Leakage Tester

Aerosol Photometer is a kind of special test instrument to test the leakage of HEPA, designed on the base of light scattering principle, displays real-time leakage rate by detecting aerosol concentrations of upstream and downstream. Applicable for testing clean rooms, laminar flow benches, biosafety cabinets, glove boxes, HEPA vacuum cleaners, HVAC systems, HEPA filters, ULPA filters, negative pressure filtration units, surgical suites, nuclear filter banks, collective protection filters, etc.est data.

APM-18 photometer Specifications
Dynamic Range	Up to 600 micrograms per liter
Reagent Settings	PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero	Automatically establishes zero reading at startup
Sensitivity	1% of readings ≥0.01% to 100%
Repeatability	0.5% of readings ≥0.01% to 100%
Flow Control	Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source	Solid State, rated for life of instrument
Reporting	Continuous, Summary, and Monitoring modes
Alarm	User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size	260 (W)X160(H)X360(D)
Weight	10Kg
Output	Wireless printer, USB interface
Power	220VAC, 50/60HZ
Standards compliance	NSF 49, IEST, ISO-14644

Application of digital aerosol photometer

leakage detection of clean room
VLF bench
biosafety cabinet
glove box
HEPA vacuum cleaner
HVAC system
HEPA filter
negative pressure filtering system
operating theatre
nuclear filter system
collection protect filter
