Solid State Negative Pressure Aerosol Filter Photometer APM-18

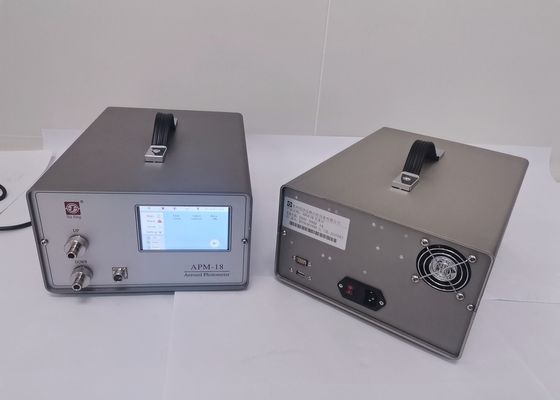

Solid State Negative Pressure Aerosol Filter Photometer APM-18

Brand Name: SUJING
Model Number: APM-18
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Place of Origin:
China
Name:
Aerosol Photometer For Negative Pressure Filtering System
Reagent Settings:
PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Output:
Wireless Printer, USB Interface
Standards Compliance:
NSF 49, IEST, ISO-14644
Light Source:
Solid State, Rated For Life Of Instrument
Warranty Time:
1 Year
Packaging Details:
Carton
Supply Ability:
800/per month
Highlight:

Aerosol Filter Photometer

,

Solid State Aerosol Filter Photometer

,

Negative Pressure Filter Photometer

Product Description

Aerosol Photometer For Negative Pressure Filtering System


The advanced, innovative and user friendly digital aerosol photometer available today, the APM-18 aerosol photometer is portable, yet rugged, and the ideal instrument for in-situ filtration system integrity testing. Utilizing the iProbe provides full functionality away from the base unit, minimizing downtime and maximizing efforts in the field.



APM-18 photometer Specifications
Dynamic Range Up to 600 micrograms per liter
Reagent Settings PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero Automatically establishes zero reading at startup
Sensitivity 1% of readings ≥0.01% to 100%
Repeatability 0.5% of readings ≥0.01% to 100%
Flow Control Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source Solid State, rated for life of instrument
Reporting Continuous, Summary, and Monitoring modes
Alarm User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size 260 (W)X160(H)X360(D)
Weight 10Kg
Output Wireless printer, USB interface
Power 220VAC, 50/60HZ
Standards compliance NSF 49, IEST, ISO-14644



Application of digital aerosol photometer

  • leakage detection of clean room
  • VLF bench
  • biosafety cabinet
  • glove box
  • HEPA vacuum cleaner
  • HVAC system
  • HEPA filter
  • negative pressure filtering system
  • operating theatre
  • nuclear filter system
  • collection protect filter
