Digital Aerosol Photometer
/

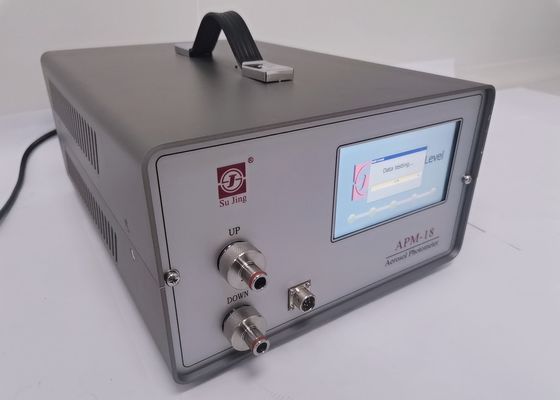

HEPA Filters Cleanroom Aerosol Photometer DOP PAO 60HZ
|
HEPA Filters Cleanroom Aerosol Photometer DOP PAO 60HZ
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Aerosol Photometer HEPA Filters With DOP/PAO In Cleanroom
Size:
260 (W)X160(H)X360(D)
Sensitivity:
1% Of Readings ≥0.01% To 100%
Repeatability:
0.5% Of Readings ≥0.01% To 100%
Dynamic Range:
Up To 600 Micrograms Per Liter
Auto Zero:
Automatically Establishes Zero Reading At Startup
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
HEPA Filters Aerosol Photometer
,Cleanroom Aerosol Photometer
,PAO Aerosol Photometer
Product Description
Aerosol Photometer HEPA Filters With DOP/PAO In Cleanroom
Aerosol Photometer is test the leakage of HEPA filter in cleanroom.
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
