Name: | DHP-1 High Pressure Diffuser Compressed Air Particle Counter | High Voltage Port Caliber: | Φ10 / Φ12 |
---|---|---|---|
Compression Resistance: | 1.0MPa/145psi/10bar | Chamber Working Pressure: | 0-500Pa |
Set Pressure Range: | 0.005-0.2MPa | Warranty Time: | 1 Year |
Highlight: | DHP-1 Compressed Air Particle Counter,145psi Compressed Air Particle Counter,SS Compressed Air Particle Counter |

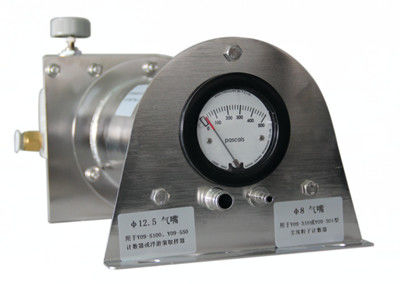

DHP-1 High Pressure Diffuser Compressed Air Particle Counter
DHP-1 High Pressure Diffuser Compressed Air Particle Counter reduce pressures from pressurized gas systems, so the gases can be analyzed by an airborne particle counter and microbial air sampler (plus one adapter). Through adjusting differential pressure gauge and pressure regulating valve, it can adjust the air pressure inside air chamber.
Main technical parameters of compressed air particle c
High voltage port caliber | Φ10 / Φ12 |
Particle counter port caliber | Φ8(2.83 or 28.3L/min) / Φ12.5(50 or 100L/min) |
Compression resistance | 1.0MPa/145psi/10bar |
Chamber working pressure | 0-500Pa |
Set pressure range | 0.005-0.2MPa |
Operating temperature | - 20-70℃ no frozen state |
Main body material | Stainless steel |
Dimensions | 250x160x140mm |
Weight | 3kg |
