| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUJING |
| Model Number: | DHP-II |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
| Name: | DHP-II High Pressure Diffusers Match With Particle Counter | Sample Pressure: | 30~150psi（0.2MPa~1MPa） |
|---|---|---|---|
| Sample Type: | Dry Gas, Inert Gas, Non-toxic And Harmless Gas | Flow Match: | 2.83L, 28.3L, 50L, 100L (with A Set Of Nozzle Joints) |
| Model Match: | Y09-3016, Y09-301, Y09-310, Y09-550, Y09-5100, FKC Series | Warranty Time: | 1 Year |
| High Light: | 150psi Inert Gas Particle Counter,50L Gas Particle Counter,Gas Particle Counter DHP-II |
||
DHP-II High Pressure Diffusers Match With Particle Counter
High Pressure Diffusers (HPDs) have been developed to address particle counting in compressed gas. HPDs reduce the pressure of the gas to about atmospheric pressure by allowing some of the air/gas to diffuse out of the system and allow the particle counter’s flow-metering system to function as designed.
Features of Compressed Air Particle Counter
| Technical specifications of compressed air particle counter | |
| Model | DHP-II |
| Sample pressure | 30~150psi(0.2MPa~1MPa) |
| Sample type | Dry gas, inert gas, non-toxic and harmless gas |
| Flow match | 2.83L, 28.3L, 50L, 100L (with a set of nozzle joints) |
| Model match | Y09-3016, Y09-301, Y09-310, Y09-550, Y09-5100, FKC series |
| Power supply | None |
| Dimension | 20cmxφ6cm (not include bracket and filter size) |
| Material | SUS316L |
| Weight | 2.5KG |
Benefits of compressed air particle counter

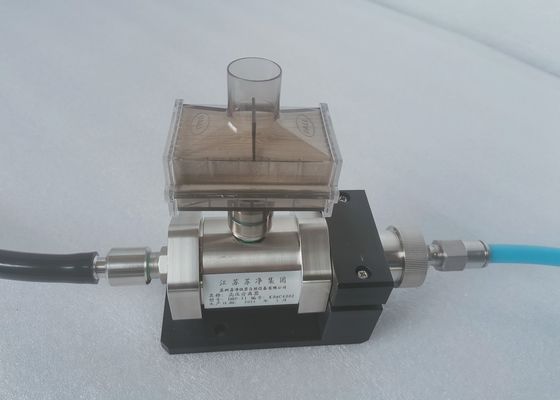

The picture of compressed air particle counter
