| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | SJ-X100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Bacterial Filtration Efficiency Detector Automated Filter Tester | Data Storage Capacity: | 20G |
|---|---|---|---|
| Data Output And Interface: | USB（3） | HEPA Performance: | ≥99.995%@0.3μm，≥99.9995%@0.12μm |
| Total Number Of Positive Quality Control Sampler Particles: | 2200±500 Cfu | Aerosol Generator Mass Median Diameter: | Average Particle Diameter (3.0±0.3 µm)，geometric Standard Deviation≤1.5 |
| High Light: | 2200cfu BFE Tester,28.3 L/Min BFE Tester,1KW BFE Tester |
||

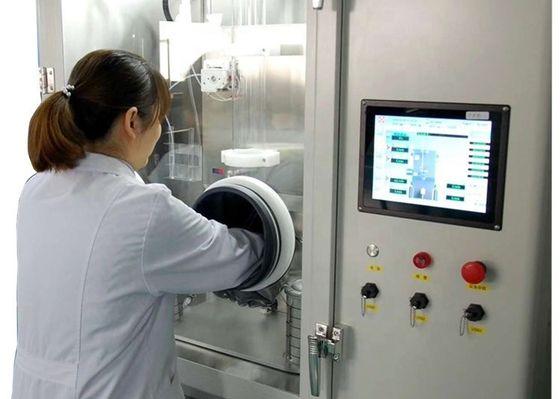

Bacterial Filtration Efficiency Detector Automated Filter Tester
Bacterial Filtration Efficiency Detector not only conforms to the requirements of medical surgical masks technology YY0469-2011 appendix B in the test method for filter efficiency (BFE) bacteria but also conforms to the American society for testing material ASTMF2100, ASTMF2101, the requirements of the European EN14683 standards, innovative improvements were made on the basis of this, with double pneumatic contrast sampling method at the same time, improve the precision of sampling,It is suitable for measuring and testing departments, scientific research institutes, mask manufacturers and other relevant departments to test the performance of mask bacterial filtration efficiency.
| Main parameter | Range | Resolution | Accuracy |
| Anode quality control sampling flow | 28.3 L/min | 0.1 L/min | ±2% |
| Sampling flow | 28.3 L/min | 0.1 L/min | ±2% |
| Spray flow | 0.1 ~ 10 L/min | 0.1 L/min | ±5% |
| Peristaltic pump flow | 0.01~3 mL/min | 0.01 mL/min | ±2% |
| Operating temperature | 0~50 ℃ | ||
| Biosafety zone negative pressure | -90 ~ -120 Pa | ||
| Data storage capacity | 20G | ||
| Data output and interface | USB(3) | ||
| HEPA performance | ≥99.995%@0.3μm,≥99.9995%@0.12μm | ||
| Total number of positive quality control sampler particles | 2200±500 cfu | ||
| Aerosol generator mass median diameter | Average particle diameter (3.0±0.3 µm),geometric standard deviation≤1.5 | ||
| Six-stage Anderson sampler capture particle size | classⅠ>7 µm; classⅡ(4.7~7 µm); class Ⅲ(3.3~4.7 µm); class Ⅳ (2.1~3.3 µm); classⅤ(1.1~2.1 µm); class Ⅵ(0.6~1.1 µm) | ||
| Aerosol chamber specifications | 600 x 80x 3.0mm (Length diameter thickness) | ||
| Ventilation flow of negative pressure cabinet | >5m3/min | ||
| Host size |
Working area: 870*600*1100mm Dimensions:1250*700*2000mm |
||
| Working noise | < 65db | ||
| Working power | AC220±10%,50Hz,1KW | ||
