Solid State Digital Aerosol Photometer For Cleanroom HVAC System

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: APM-18
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: APM-18 Aerosol Photometer For Cleanroom HVAC System Reagent Settings: PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Weight: Weight Output: Wireless Printer, USB Interface
Standards Compliance: NSF 49, IEST, ISO-14644 Light Source: Solid State, Rated For Life Of Instrument
High Light:

Wireless Printer Digital Aerosol Photometer

,

Cleanroom HVAC System Digital Aerosol Photometer

,

Solid State Digital Aerosol Photometer


Product Description

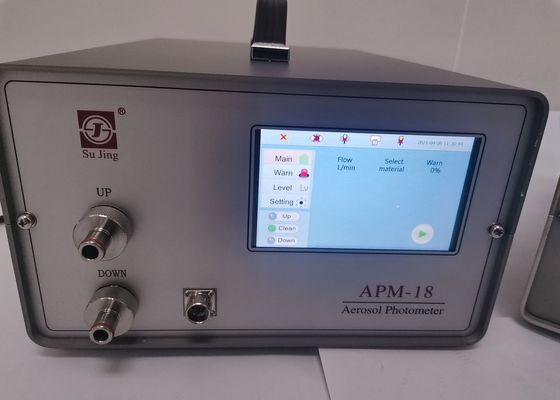

APM-18 Aerosol Photometer For Cleanroom HVAC System



Aerosol Photometer and Aerosol Generator are used to detect the leakage efficiency of high efficiency filter. When the aerosol generator is combined with aerosol photometer, the defects of the filter, such as pinhole, leakage point, gasket leakage, internal leakage, or frame leakage, can be quickly detected, and timely correction and relevant measures can be taken to ensure the efficiency of the high efficiency filter and the cleanliness level of the ultra clean room.



Features and Benefits of aerosol photometer

  • long life laser light source;
  •  high precision photoelectric multiplier tube detection;
  •  can set PAO, DOP and other types of aerosols;
  • equipped with a dedicated handheld device to achieve control, display and sampling function;
  •  large capacity data storage, real-time data storage;
  • more than the setting alarm sound and light alarm;
  • can be obtained by U disk or thermal printer to print historical data;
  •  can print leakage rate and other monitoring data in real time;
  •  through the special software, the sampling data can be imported into PC;
  •  automatic fault detection.

Application of digital aerosol photometer

  • leakage detection of clean room
  • VLF bench
  • biosafety cabinet
  • glove box
  • HEPA vacuum cleaner
  • HVAC system
  • HEPA filter
  • negative pressure filtering system
  • operating theatre
  • nuclear filter system
  • collection protect filter
APM-18 photometer Specifications
Dynamic Range Up to 600 micrograms per liter
Reagent Settings PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero Automatically establishes zero reading at startup
Sensitivity 1% of readings ≥0.01% to 100%
Repeatability 0.5% of readings ≥0.01% to 100%
Flow Control Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source Solid State, rated for life of instrument
Reporting Continuous, Summary, and Monitoring modes
Alarm User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size 260 (W)X160(H)X360(D)
Weight 10Kg
Output Wireless printer, USB interface
Power 220VAC, 50/60HZ
Standards compliance NSF 49, IEST, ISO-14644





Solid State Digital Aerosol Photometer For Cleanroom HVAC System 0
