PWM Control Aerosol Photometer For Integrity Filtration System Leak Detection
|
PWM Control Aerosol Photometer For Integrity Filtration System Leak Detection
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Aerosol Photometer For The Leak Detection Of Integrity Filtration System
Repeatability:
0.5% Of Readings ≥0.01% To 100%
Sensitivity:
1% Of Readings ≥0.01% To 100%
Flow Control:
Pulse Width Modulation (PWM) Control Ensures Sampling Rate Of 1cfm (28.3lpm) +/- 10% In All Applications.
Auto Zero:
Automatically Establishes Zero Reading At Startup
Warranty Time:
1 Year
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
Leak Detection Digital Aerosol Photometer
,Leak Detection Aerosol Photometer
,PWM Control Aerosol Photometer
Product Description

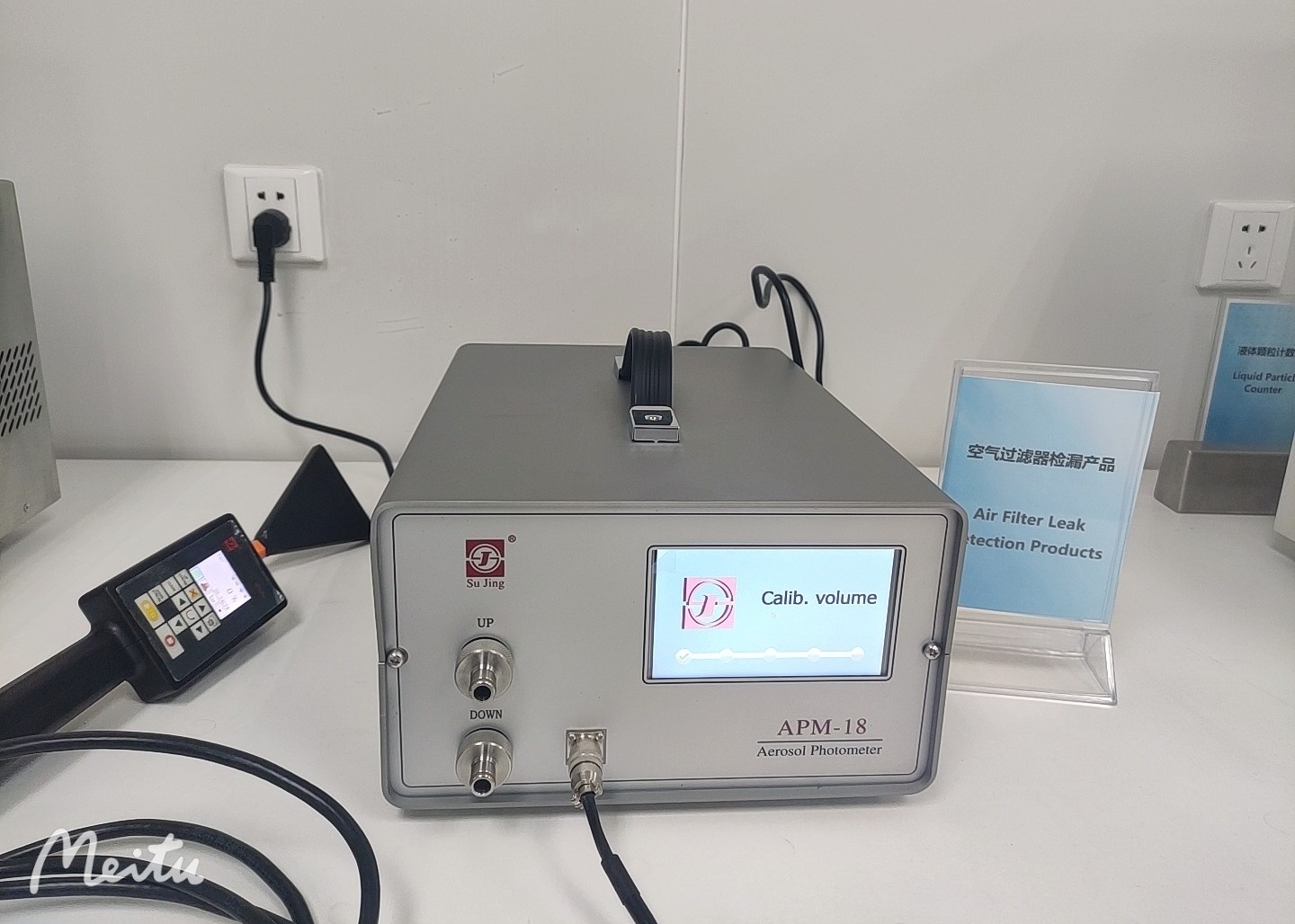

Aerosol Photometer For The Leak Detection Of Integrity Filtration System
Aerosol photometer for the leak detection of integrity filtration system is mainly used for integrity detection of high efficiency filter system. Its scanning probe can provide all the operation functions of the host. After performance verification, it has been proved by data and facts that its sensitivity, accuracy, repeatability and other technical indicators have fully reached the international advanced level, and a single key indicator such as self-cleaning time has exceeded the international well-known brand.
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
Application of digital aerosol photometer
- leakage detection of clean room
- VLF bench
- biosafety cabinet
- glove box
- HEPA vacuum cleaner
- HVAC system
- HEPA filter
- negative pressure filtering system
- operating theatre
- nuclear filter system
- collection protect filter
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
