Digital Aerosol Photometer
/
High Precision Digital Aerosol Photometer For Independent Filter
|
High Precision Digital Aerosol Photometer For Independent Filter
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Digital Aerosol Photometer Independent Filter Certifiers
Repeatability:
0.5% Of Readings ≥0.01% To 100%
Sensitivity:
1% Of Readings ≥0.01% To 100%
Flow Control:
Pulse Width Modulation (PWM) Control Ensures Sampling Rate Of 1cfm (28.3lpm) +/- 10% In All Applications.
Auto Zero:
Automatically Establishes Zero Reading At Startup
Dynamic Range:
Up To 600 Micrograms Per Liter
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
High Precision Digital Aerosol Photometer
,High Precision Aerosol Photometer
,Independent Filter Digital Aerosol Photometer
Product Description
Digital Aerosol Photometer independent filter certifiers

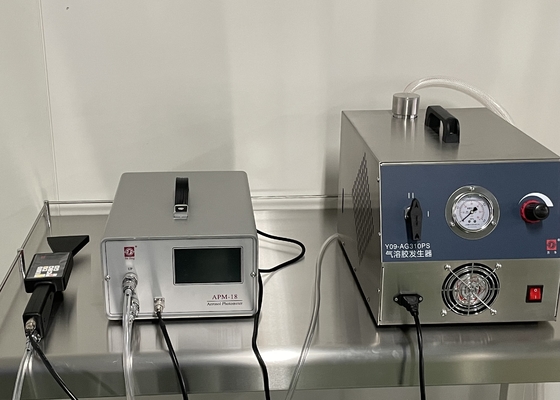

The APM-18 is designed on the base of light scattering principle, displays real-time leakage rate by detecting aerosol concentrations of upstream and downstream. it has solid die-cast aluminum housing, easy for maintenance and calibration having a measuring scope of 0.0001% to 100.0% and has alarm for user selection and visualisation. It also has vibratory alarms to notify the user when the defined set point is exceeded. Light source of the aerosol photometer is for Long time. It can work under low power and generate low heat and deviation value
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
Application of digital aerosol photometer
- leakage detection of clean room
- VLF bench
- biosafety cabinet
- glove box
- HEPA vacuum cleaner
- HVAC system
- HEPA filter
- negative pressure filtering system
- operating theatre
- nuclear filter system
- collection protect filter
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
