Digital Aerosol Photometer
/
Solid State Digital Photometer With USB Interface ISO-14644
|
Solid State Digital Photometer With USB Interface ISO-14644
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection
Reagent Settings:
PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Weight:
Weight
Output:
Wireless Printer, USB Interface
Standards Compliance:
NSF 49, IEST, ISO-14644
Light Source:
Solid State, Rated For Life Of Instrument
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
Solid State Digital Photometer
,USB Interface Digital Photometer
,Digital Aerosol Photometer ISO-14644
Product Description
Digital Photometer

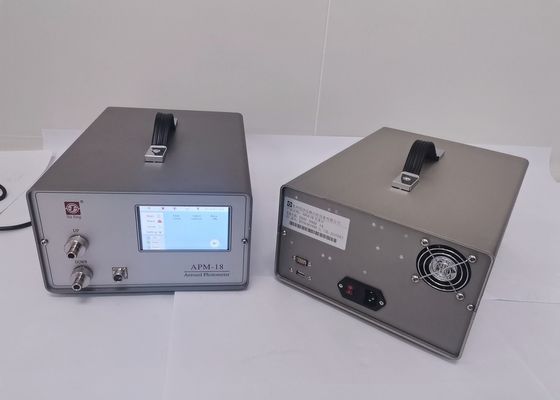

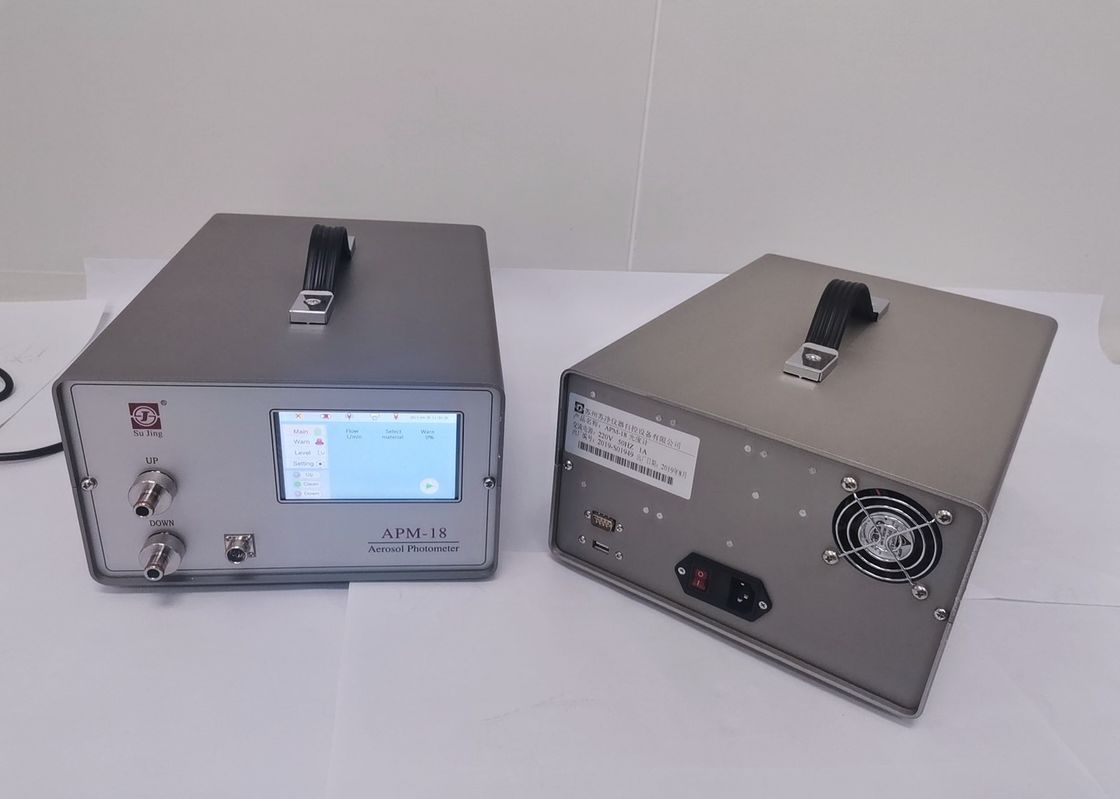

APM-18photometer is the advanced digital, linear aerosol photometer using the light scattering method. The basic function of the APM-18 is to sample air or other gases and report the mass concentration of particulates in the sample. The most common application is to detect leaks in high efficiency filter systems.
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
Application of digital aerosol photometer
- leakage detection of clean room
- VLF bench
- biosafety cabinet
- glove box
- HEPA vacuum cleaner
- HVAC system
- HEPA filter
- negative pressure filtering system
- operating theatre
- nuclear filter system
- collection protect filter
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
