Medical Equipment Liquid Particle Counter For Cleanliness Detection
|
Medical Equipment Liquid Particle Counter For Cleanliness Detection
| Brand Name: | SUJING |
| Model Number: | LE100 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Liquid Particle Counter Cleanliness Detect Of Medical Equipment
Display:
7inch LCD Color Touch Screen
Sample Stirring Method:
Magnetic Stirring (adjustable)
Data Output:
RS232 Port, USB, Built-in Printer
Syringe Specifications:
1ml, 5ml, 10ml*, 25ml
Maximum Detection Concentration:
10000 Particles/ml
Packaging Details:
Wooden Case
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
10ml Liquid Particle Counter
,50Hz Liquid Particle Counter
,USP Liquid Particle Counter
Product Description
Liquid Particle Counter Cleanliness Detect Of Medical Equipment
LE100 liquid particle counter are integrated syringe samplers and optical particle counting systems with an easy-to-use Windows based software interface. Following a quality standard of reliability and dependability, LE100 liquid particle counter using the latest in laser optical particle counter technology. With a Sample Flow Rate of 20mL/min, the LE100 provides unprecedented measurement speed and accuracy.
| Technical parameters | liquid particle counter |
| Particle size range | 2-400 μm |
| Particle size channel | 24 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ±10% |
| Repeatability | RSD<2% (particles>1000 per ml, 5ml sample) |
| Resolution | <10% (U.S.P, ISO 21501) |
| Syringe specifications | 1ml, 5ml, 10ml*, 25ml |
| Sampling speed | 20 ml/min* |
| Sample volume accuracy | ±1% |
| Minimum sampling volume | 0.2ml** |
| Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
| Power supply | AC 100~240V, 50/60HZ |
| Mixing method | Magnetic stirrer (speed adjustable) |
| Data output | RS232 port; USB; built-in thermal printer |
| Display output | 7 inch LCD color touch screen |
| Size | 320(L)×309(W)×394(H) mm |
| Weight | 11.0 kg |
| Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
| Software system | LE-Assistant (optional) |
|
* Standard configuration ** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml |
|

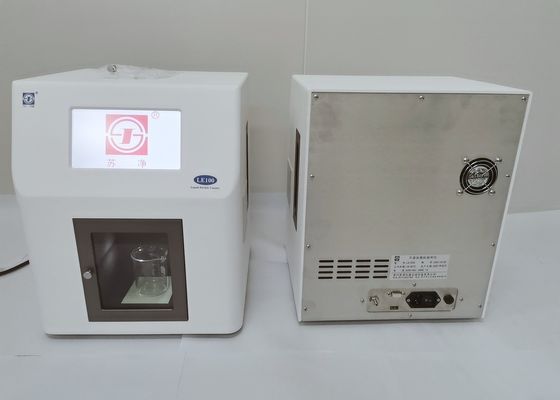

Overview descriptions of liquid particle counter
| 8.Exhaust fan | 1. Display |
| 9.heat emission hole | 2. Door of sample chamber |
| 10. Power switch | 3. Thermal printer |
| 11. AC power outlet and fuse | 4. Syringe |
| 12. R232 port | 5. Sample tube |
| 13. Sample drain | 6. LED chamber light |
| 14. USB port | 7. Stirrer |
Components of liquid particle counter
| The instrument ×1 | Power cord ×1 |
| Fuse ×1 | Detecting cup ×1 |
| Stir rod ×1 | Operation manual ×1 |
| Drain line tube ×1 | Testing report ×1 |
| Touch pen ×1 | Quality certificate ×1 |
| Printing paper ×1 | Warranty card ×1 |
| Packing list ×1 |
Application of liquid particle counter
-
Injections testing under CP, USP, EP, JP and other standards -
Cleanliness detecting of medical equipment / parts -
Filtration efficiency detection -
Laboratory water testing
