PTFE Sensor Liquid Particle Counter Usp 788 For Suspended Particles
|
PTFE Sensor Liquid Particle Counter Usp 788 For Suspended Particles
| Brand Name: | SUJING |
| Model Number: | LS100-2 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
LS100-2 Liquid Particle Counter For USP788 Suspended Particles
Particle Size Range:
0.2-2μm
Particle Size Channel:
16
Display:
7inch LCD Color Touch Screen
Maximum Detection Concentration:
10000 Particles/ml
Warranty Time:
1 Year
Packaging Details:
Wooden Case
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
2um Suspended liquid particle counter
,cleanroom Liquid Particle Counter
,usp 788 liquid particle counter
Product Description

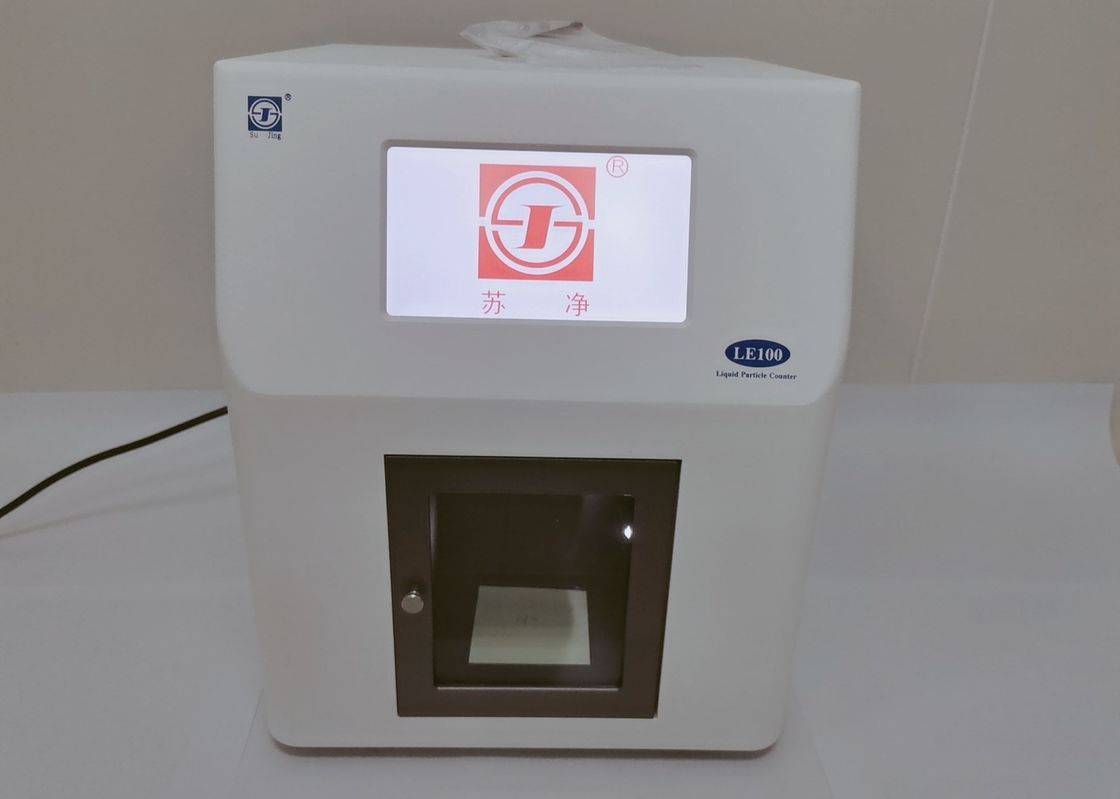

LS100-2 Liquid Particle Counter For USP788 Suspended Particles
Utilizing the principle of "near-angle light scattering", a revolving laser beam passes through the walls of a glass container or a flow-thru cell. When it is directed through a central "sensitive zone", the liquid particle counter not only counts the particles in suspension. The analog signals generated by the light pulses are routed to a computer and digitized.
| Technical parameters | liquid particle counter |
| Particle size range | 0.2-2μm |
| Particle size channel | 16 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ±10% |
| Sampling speed | 20 ml/min* |
| Sample volume accuracy | ±1% |
| Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
| Power supply | AC 100~240V, 50/60HZ |
| Data output | RS232 port; USB; built-in thermal printer |
| Display output | 7 inch LCD color touch screen |
| Size | 320(L)×309(W)×394(H) mm |
| Weight | 11.0 kg |
| Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
Overview descriptions of liquid particle counter
| 8.Exhaust fan | 1. Display |

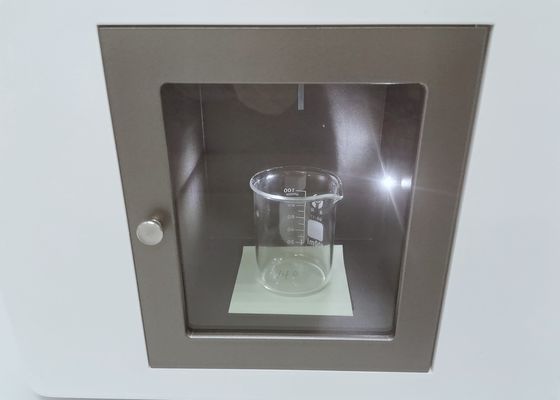

| 9.heat emission hole | 2. Door of sample chamber |
| 10. Power switch | 3. Thermal printer |
| 11. AC power outlet and fuse | 4. Syringe |
| 12. R232 port | 5. Sample tube |
| 13. Sample drain | 6. LED chamber light |
| 14. USB port | 7. Stirrer |
Components of liquid particle counter
| The instrument ×1 | Power cord ×1 |
| Fuse ×1 | Detecting cup ×1 |
| Stir rod ×1 | Operation manual ×1 |
| Drain line tube ×1 | Testing report ×1 |
| Touch pen ×1 | Quality certificate ×1 |
| Printing paper ×1 | Warranty card ×1 |
| Packing list ×1 |
