Injections Testing Pharma Particle Counter AC 240V USP 788

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: LE100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: LE100 Liquid Particle Counter Injections Testing Display: 7inch LCD Color Touch Screen
Sample Stirring Method: Magnetic Stirring (adjustable) Data Output: RS232 Port, USB, Built-in Printer
Syringe Specifications: 1ml, 5ml, 10ml*, 25ml Maximum Detection Concentration: 10000 Particles/ml
High Light:

PTFE sensor pharma particle counter

,

AC 240V pharma particle counter

,

USP 788 Pharma Particle Counter


Product Description

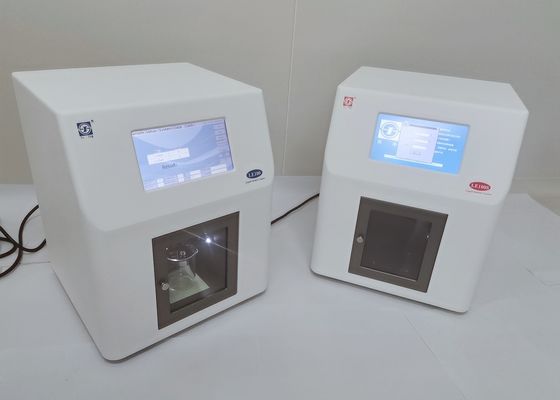

LE100 Liquid Particle Counter Injections Testing In Pharma



Liquid Particle Counter for USP 788 sizes and counts suspended particulate matter in a wide range of liquids, including parenterals, to meet all current U.S., European and Japanese Pharmacopoeia standards. When it comes to particle monitoring quality control for liquid drug manufacturers, it’s important to meet regulations while minimizing waste.



Technical parameters liquid particle counter
Particle size range 2-400 μm
Particle size channel 24
Maximum detection concentration 10000 particles/ml
Accuracy ±10%
Repeatability RSD<2% (particles>1000 per ml, 5ml sample)
Resolution <10% (U.S.P, ISO 21501)
Syringe specifications 1ml, 5ml, 10ml*, 25ml
Sampling speed 20 ml/min*
Sample volume accuracy ±1%
Minimum sampling volume 0.2ml**
Sensor material 316 stainless steel, quartz glass, PTFE, NBR
Power supply AC 100~240V, 50/60HZ
Mixing method Magnetic stirrer (speed adjustable)
Data output RS232 port; USB; built-in thermal printer
Display output 7 inch LCD color touch screen
Size 320(L)×309(W)×394(H) mm
Weight 11.0 kg
Operating environment Temperature 10-40 ℃; RH 0 ~ 95% non-condensing
Software system LE-Assistant (optional)



* Standard configuration

** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml







Injections Testing Pharma Particle Counter AC 240V USP 788 0 Injections Testing Pharma Particle Counter AC 240V USP 788 1

Overview descriptions of liquid particle counter

8.Exhaust fan 1. Display
9.heat emission hole 2. Door of sample chamber
10. Power switch 3. Thermal printer
11. AC power outlet and fuse 4. Syringe
12. R232 port 5. Sample tube
13. Sample drain 6. LED chamber light
14. USB port 7. Stirrer



Components of liquid particle counter



The instrument ×1 Power cord ×1
Fuse ×1 Detecting cup ×1
Stir rod ×1 Operation manual ×1
Drain line tube ×1 Testing report ×1
Touch pen ×1 Quality certificate ×1
Printing paper ×1 Warranty card ×1
Packing list ×1



Features of liquid particle counter

  • Built-in USP testing standards
  • Precision syringe sampling device, accurate sampling volume, stable speed
  • Built-in calibration curve, in line with calibration requirements of ISO-21501
  • Intelligent automatic detection and automatic calibration function, instrument performance judgment and calibration
  • Use of magnetic stirring, stirring speed adjustable
  • USB interface direct export data, paperless electronic print report
  • Powerful application software development support. Easy to connect to the laboratory information management system etc.
  • The LE-Assistant software implements PC control and provides professional data processing
  • Compliant with FDA 21 CFR part 11 "Electronic Records and Signatures" and user rating management




Application of liquid particle counter

  • Injections testing under CP, USP, EP, JP and other standards
  • Cleanliness detecting of medical equipment / parts
  • Filtration efficiency detection
  • Laboratory water testing
