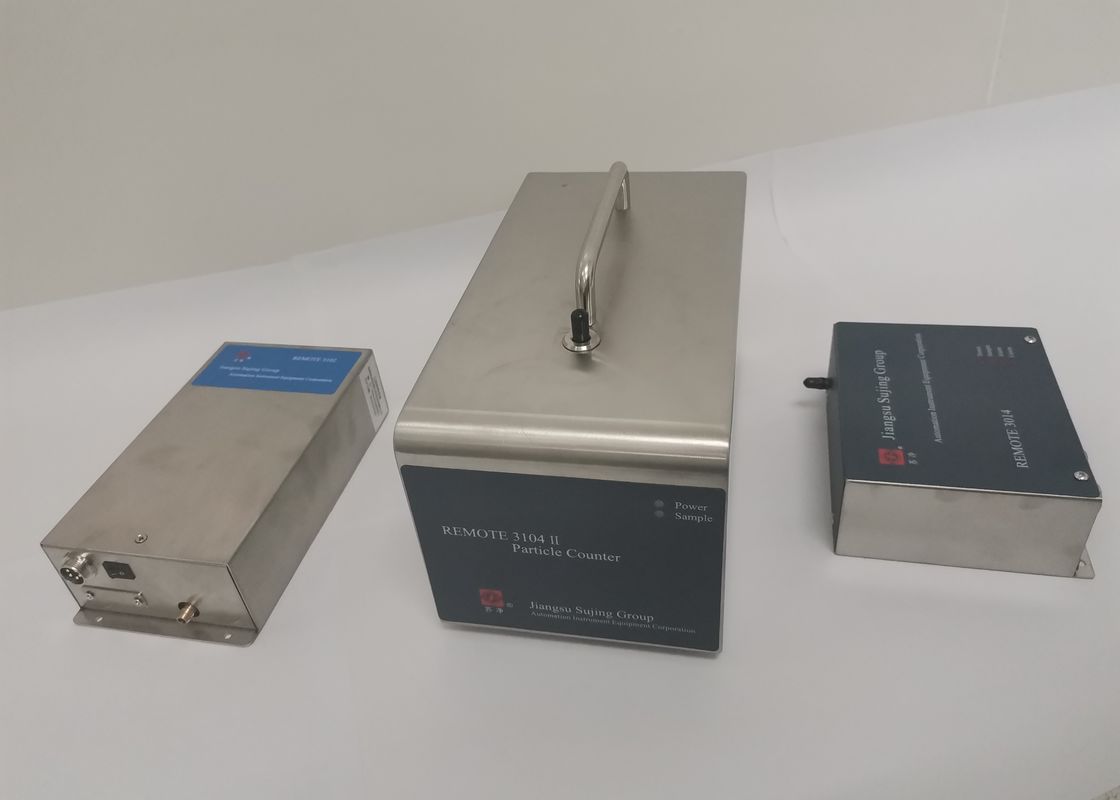

Remote 3104 Online Real Time Particle Counter RS485 Modbus

Remote 3104 Online Real Time Particle Counter RS485 Modbus

Brand Name: SUJING
Model Number: Remote
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Place of Origin:
JIANGSU
Name:
28.3lpm (1.0cfm) Built-In Pump Online Dust Particle Counter
Detect Class:
ISO Class 5-9 (EU GMP Grade A-D)
Standard:
GMP, ISO14644, FDA, JJF1190-2008
Two Size Channels:
0.5 & 5.0 Micron Sensitivity
Flow Rate:
2.83L/min, Or 28.3L/min
Warranty Time:
1 Year
Packaging Details:
Carton
Supply Ability:
800/per month
Highlight:

106Kpa Real Time Particle Counter

,

RS485 Modbus Online Particle Counter

,

Remote 3104 Real Time Particle Counter

Product Description

Remote 3104 Online Real Time Particle Counter Rs-485 Modbus



The Remote 3104 will integrate seamlessly into large facility monitoring and management systems and transfer up to 6 channels of simultaneous particle count data using RS-485 Modbus.



1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 2.83L/min, or 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors



REMOTE 3104

28.3LPM (1.0CFM) built-in pump



Remote 3104 Online Real Time Particle Counter RS485 Modbus 0



Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA





Remote 3104 Online Real Time Particle Counter RS485 Modbus 1
