Remote 3104 Online Real Time Particle Counter 40W 28.3L/Min

Basic Information
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: 28.3lpm (1.0cfm) Built-In Pump Online Dust Particle Counter Detect Class: ISO Class 5-9 (EU GMP Grade A-D)
Standard: GMP, ISO14644, FDA, JJF1190-2008 Two Size Channels: 0.5 & 5.0 Micron Sensitivity
Flow Rate: 2.83L/min, Or 28.3L/min Warranty Time: 1 Year
High Light:

3104 Online Real Time Particle Counter


40W Real Time Particle Counter


28.3L/Min Real Time Particle Counter

Product Description

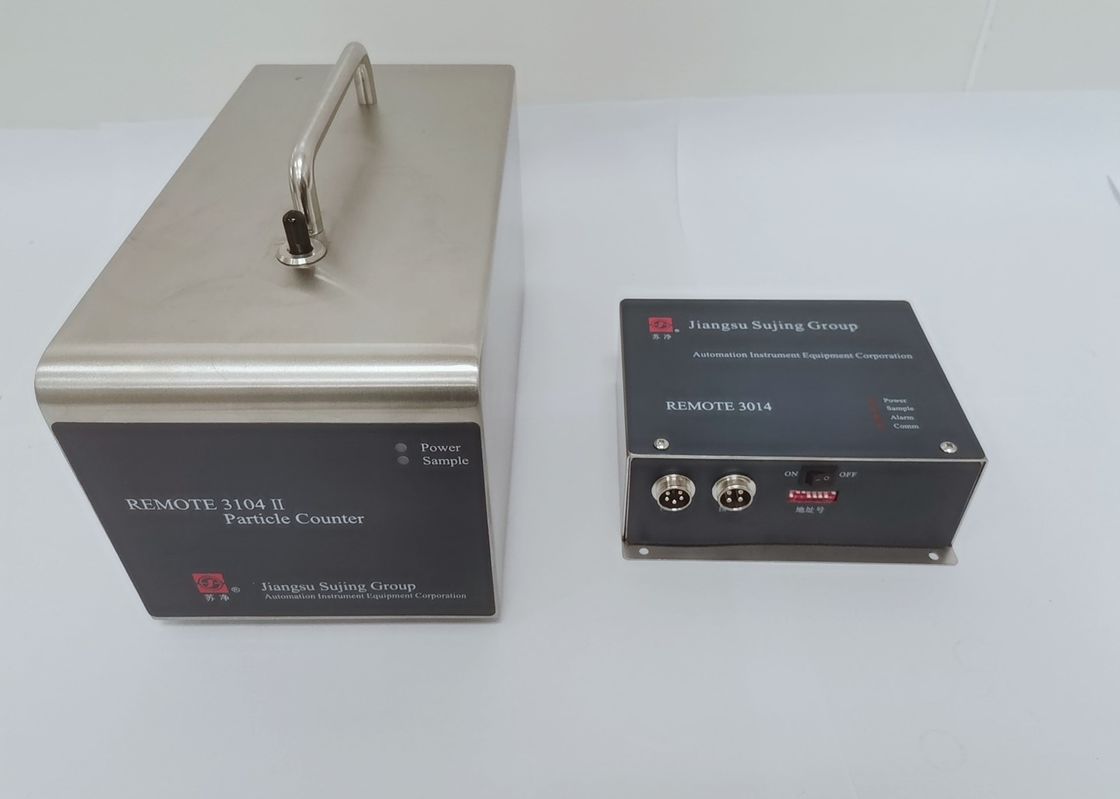

3104 Online Real Time Particle Counter For 24hours Monitoring


Remote Active Air Sampler Perfect for monitoring of large cleanrooms or critical environments, Their small size, flexible power options and wireless capabilities allow installation where space is limited. Worry-free monitoring with best-in-class data buffering reduces risk of data loss during network outages.


Feature of online particle counter

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate:   28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors

7. Complies with all requirements of ISO 21501-4

8.1 Year warranty time


Application of online particle counter


  • Filter Testing
  • Continuous Particle Contamination Monitoring



28.3LPM (1.0CFM) built-in pump


Remote 3104 Online Real Time Particle Counter 40W 28.3L/Min 0


Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA



Remote 3104 Online Real Time Particle Counter 40W 28.3L/Min 1
