Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V

Name: Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V
Brand: Suzhou Sujing Automation Equipment corporation limited
SKU: Remote
Price: 4,000.00 USD
Availability: InStock

Brand Name:	SUJING
Model Number:	Remote
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	800/per month

Detail Information

Product Description

Detail Information

Place of Origin:

JIANGSU

Name:

Particle Counter Continuous Particle Contamination Monitoring

Detect Class:

ISO Class 5-9 (EU GMP Grade A-D)

Standard:

GMP, ISO14644, FDA, JJF1190-2008

Two Size Channels:

0.5 & 5.0 Micron Sensitivity

Flow Rate:

2.83L/min, Or 28.3L/min

Warranty Time:

1 Year

Packaging Details:

Carton

Supply Ability:

800/per month

Highlight:

GMP continuous particle counter

DC24V continuous particle counter

28.3LPM continuous particle counter

Product Description

Particle Counter Continuous Particle Contamination Monitoring

Remote Particle Counters with Pump offer cleanroom professionals top-notch reliability and no-hassle operation in measuring a wide range of particleµm. They are designed so that you have critical data at your fingertips— sizes, including a 6-channel model with upper size threshold of 25 using second-by-second sampling—without worry of data interruption or potential data loss.All models comply with the stringent requirements set forth in the latest ISO 21501-4 calibration standard.

Feature of online particle counter

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors

7. Complies with all requirements of ISO 21501-4

8.1 Year warranty time

Application of online particle counter

Filter Testing
Continuous Particle Contamination Monitoring

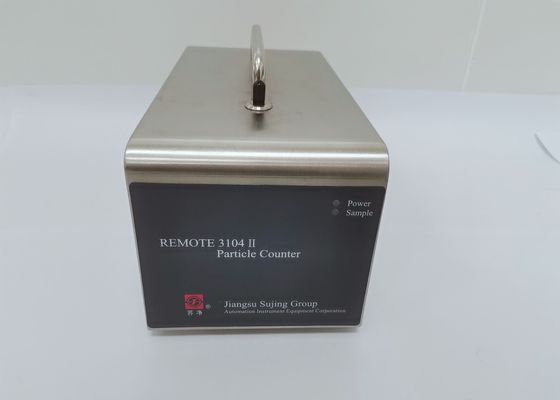

REMOTE 3104

28.3LPM (1.0CFM) built-in pump

Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V 0

Outside Dim	275450175 mm³(WideDeepHigh)
Weight	4kg
Max. Consumption	40W
Power Source	DC24V
Size Channels	0.5, 5μm
Flow Rate	28.3L/min
Environmental	Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles	Selectable(1s-24h)
Zero Court	<=10min
Data Output	RS485(modbus) or 4-20mA

Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V 1
