| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Remote E1104 Online Particle Counter With 0.1 Micron Sensitivity | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Standard: | GMP, ISO14644, FDA, JJF1190-2008 | Two Size Channels: | 0.1micron Sensitivity |
| Flow Rate: | 28.3L/min | Warranty Time: | 1 Year |
| High Light: | 0.1 Micron Sensitivity Online Particle Counter,DC24V Online Particle Counter,Remote E1104 Online Particle Counter |
||

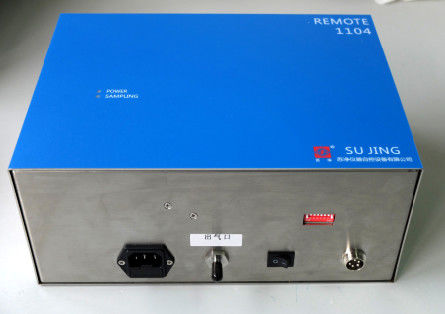

Remote E1104 Online Particle Counter With 0.1 Micron Sensitivity
Remote Particle Counter Model offers an accurate measurement of particles down to 0.100 μm! This instrument is designed for clean room monitoring, process tool monitoring, and filter test applications. And, since the particle counter is used with an external vacuum source, there is significant flexibility in placing and configuring systems.
1. Compact laser particle sensor with stainless enclosure
2. Six size channels 0.1.0.2,0.3,0.5,0.7,1.0 micron sensitivity
3. Flow Rate: 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
REMOTE E1104
28.3LPM (1.0CFM)
| Outside Dim | 330*256*202 mm³(Wide*Deep*High) |
| Weight | 7kg |
| Power Source | DC24V |
| Size Channels | 0.1, 0.2,0.3,0.5,0.7,1.0 μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Source | external vacuum source |
