| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Remote3104 Online Particle Counter With Pump FOR Filter Testing | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Standard: | GMP, ISO14644, FDA, JJF1190-2008 | Two Size Channels: | 0.5 & 5.0 Micron Sensitivity |
| Flow Rate: | 2.83L/min, Or 28.3L/min | Warranty Time: | 1 Year |
| High Light: | 5.0 micron sensitivity Online Particle Counter,Online Particle Counter 28.3L/Min,1.0CFM Online Particle Counter |
||

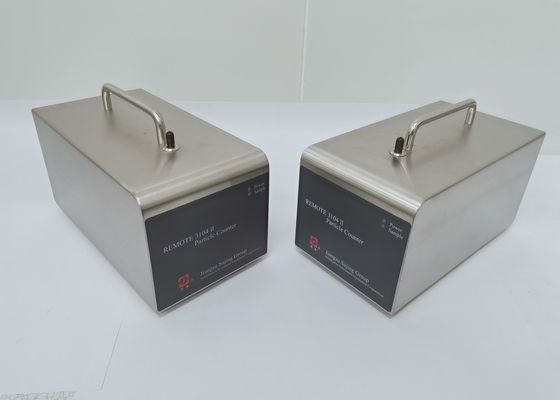

Remote3104 Online Particle Counter With Pump FOR Filter Testing
Remote Particle Counters with Pump are ideal for installation in locations that do not have an external vacuum system, typical to but not limited to electronics, semiconductor, and industrial facilities. Having an internal pump and long range wireless communication technology, they reduce installation complexity and costs in facilities with limited infrastructure. It’s easy to relocate them as manufacturing layouts change or facilities redistribute resources or move locations.
Feature of online particle counter
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
7. Complies with all requirements of ISO 21501-4
8.1 Year warranty time
Application of online particle counter
REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
