| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-AG310PS |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-AG310PS Aerosol Generator Photometer For Cleanroom In Lab | Flow Range: | 50-2000cfm (1.4-56.6m³/min) |
|---|---|---|---|
| Generating Aerosol Type: | Polydispersed Particles, PAO, DOP | Generating Method: | 1-6 Laskin |
| Warranty Time: | 1 Year | Weight: | 8kg |
| High Light: | Cleanroom Lab Aerosol Photometer,Polydispersed particles Aerosol Photometer,2000cfm Aerosol Photometer |
||

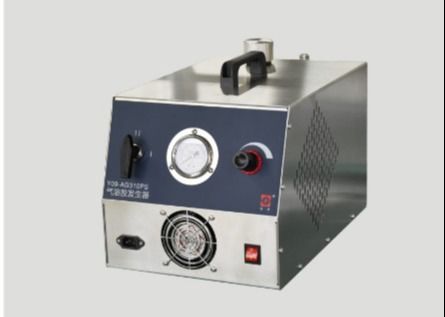

Y09-AG310PS Aerosol Generator Photometer For Cleanroom In Lab
Y09-AG310PS aerosol generator (cold) is our latest device that uses compressed air to spatter in liquid through laskin nozzle to generate a polydisperse aerosol. It is mainly used to test the integrity and leakage rate of high-efficiency filtration and ultra-high-efficiency filtration systems.
Characteristic of aerosol generator
| Specifications of aerosol generator | |
| Name | Aerosol generator |
| Model | Y09-AG310PS |
| Flow range | 50-2000cfm (1.4-56.6m³/min) |
| Concentration | 10ug/L 2000cfm；100ug/L 200cfm； |
| Aerosol type | Polydisperse particles (cold), PAO-4, DOP |
| Mode | 1-6 Laskin output |
| Compressed air | Do not need (built-in air compressor) |
| Housing | 316 stainless steel shell belt handle |
| Size | 430x298x268mm |
| Weight | 18Kg |
| Power | 220V AC, 50/60HZ |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
