| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-AG310 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-AG310 Clean Room Laboratory Use Aerosol Generator | Generating Aerosol Type: | Polydispersed Particles, PAO, DOP |
|---|---|---|---|
| Concentration: | 10u10ug/L 8100cfm;100ug/L 810cfm; | Generating Method: | 1-6 Laskin |
| Warranty Time: | 1 Year | Weight: | 8kg |
| High Light: | PAO Generating Aerosol Generator,Lab Use Aerosol Generator,100ug/L Aerosol Generator |
||

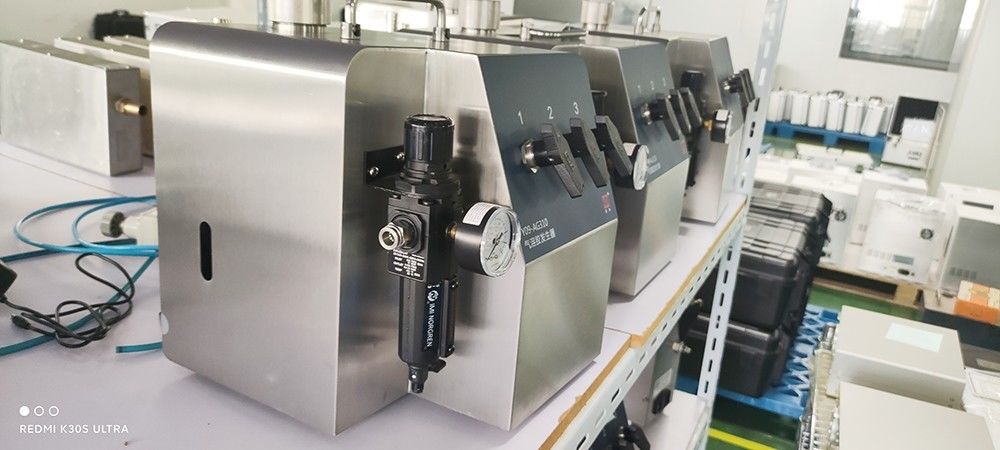

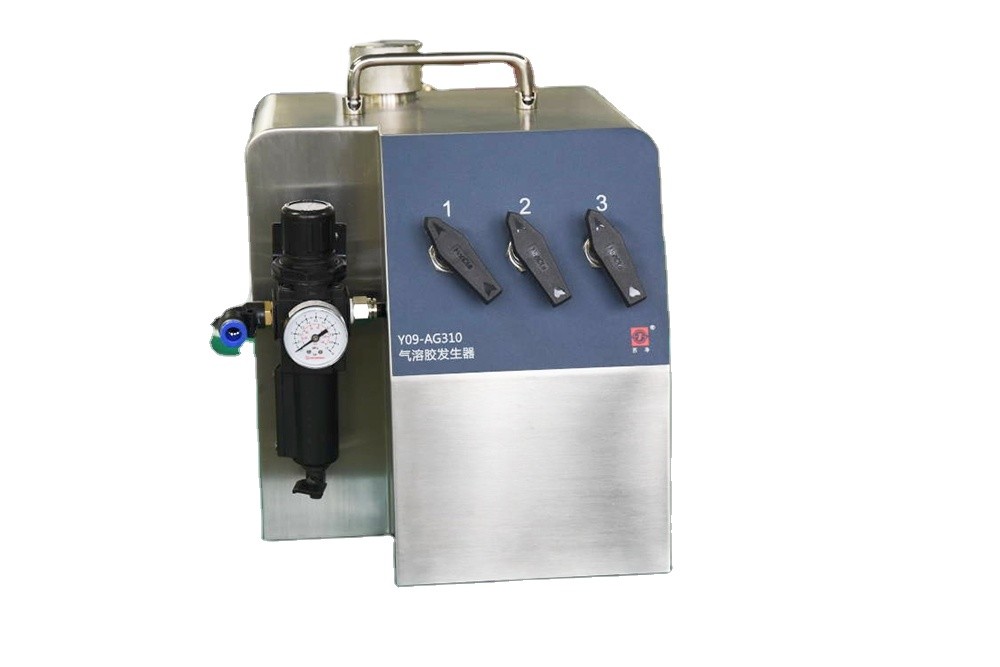

Y09-AG310 Clean Room Laboratory Use Aerosol Generator
Y09-AG310 aerosol generator is developed by our company and the production of portable cold aerosol generator, It can meet the requirements of the HEPA filter test for all small cleaning units to the large clean room air supply system. Y09-AG310 produces a continuous, stable aerosol particle and is convenient to add the solution. Note: customers are required to configure their own compressed air pump or gas source.
Y09-AG310 aerosol generator (cold) is a device that uses external compressed air to splash in a liquid through a laskin nozzle to generate a polydisperse aerosol in the physical state. Mainly used to test the integrity and leakage rate of high-efficiency filtration and ultra-high-efficiency filtration systems
| Technical Specification of Aerosol Generator | |
| Name | Aerosol generator |
| Model | Y09-AG310 |
| Flow range | 50-8100 cfm (1.4-229m³/min) |
| Generating concentration | 10ug/L (flow rate 8100cfm); 100ug/L (flow rate 810cfm) |
| Generating aerosol type | Polydispersed particles, PAO, DOP |
| Generating method | 1-6 Laskin |
| Compressed air | Need external air source 3-18cfm (85-510L/MIN) 20psi (0.14MPa) |
| Power | No |
| Size | 288mmx270mmx303mm |
| Shell | 316 stainless steel with handle |
| Weight | 8kg |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
