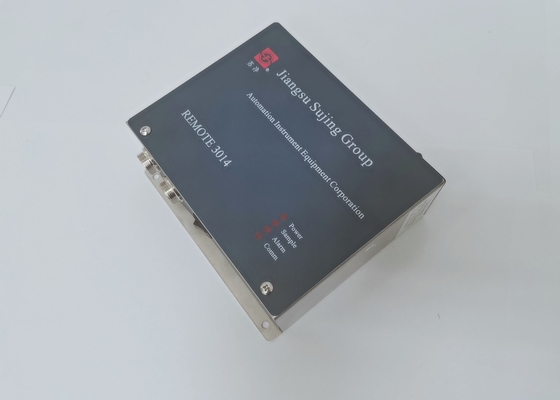

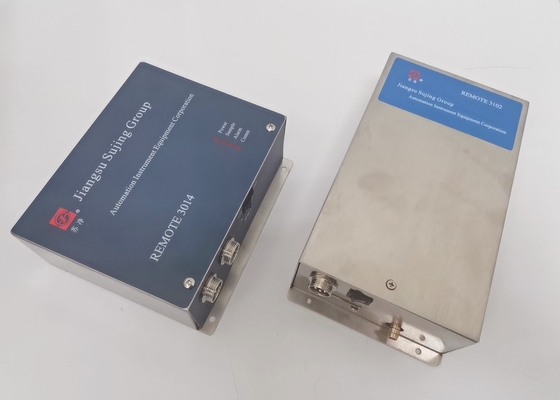

Remote 3014 Online Particle Counter 2.83L/Min For Cleanroom GMP
|
Remote 3014 Online Particle Counter 2.83L/Min For Cleanroom GMP
| Brand Name: | SUJING |
| Model Number: | Remote |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
JIANGSU
Name:
Remote 3014 Online Particle Counter 2.83L/Min For Cleanroom GMP
Detect Class:
ISO Class 5-9 (EU GMP Grade A-D)
Standard:
GMP, ISO14644, FDA, JJF1190-2008
Two Size Channels:
0.5 & 5.0 Micron Sensitivity
Application:
Cleanroom
Sensor:
Laser Sensor
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
Online Continuous Particle Counter
,2.83L/Min Continuous Particle Counter
,Online Cleanroom Particle Counter
Product Description
Remote 3014 Online Particle Counter 2.83L/Min For Cleanroom GMP
The online monitoring system of suspended particles is used to record the status of suspended particles in the air of key areas of the production line.
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
Product Description
REMOTE 3014
2.83LPM (0.1CFM) built-in pump
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
