| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Online Monitoring System Continuous Particle Counter 28.3LPM DC24V | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Two Size Channels: | 0.5 & 5.0 Micron Sensitivity | Flow Rate: | 1cfm, Or 0.1cfm |
| Sensor: | Light Scattering | Standard: | ISO 21501-4 |
| High Light: | Continuous Particle Counter 28.3LPM,Continuous Particle Counter DC 24V,28.3LPM Continuous Particle Monitoring System |
||

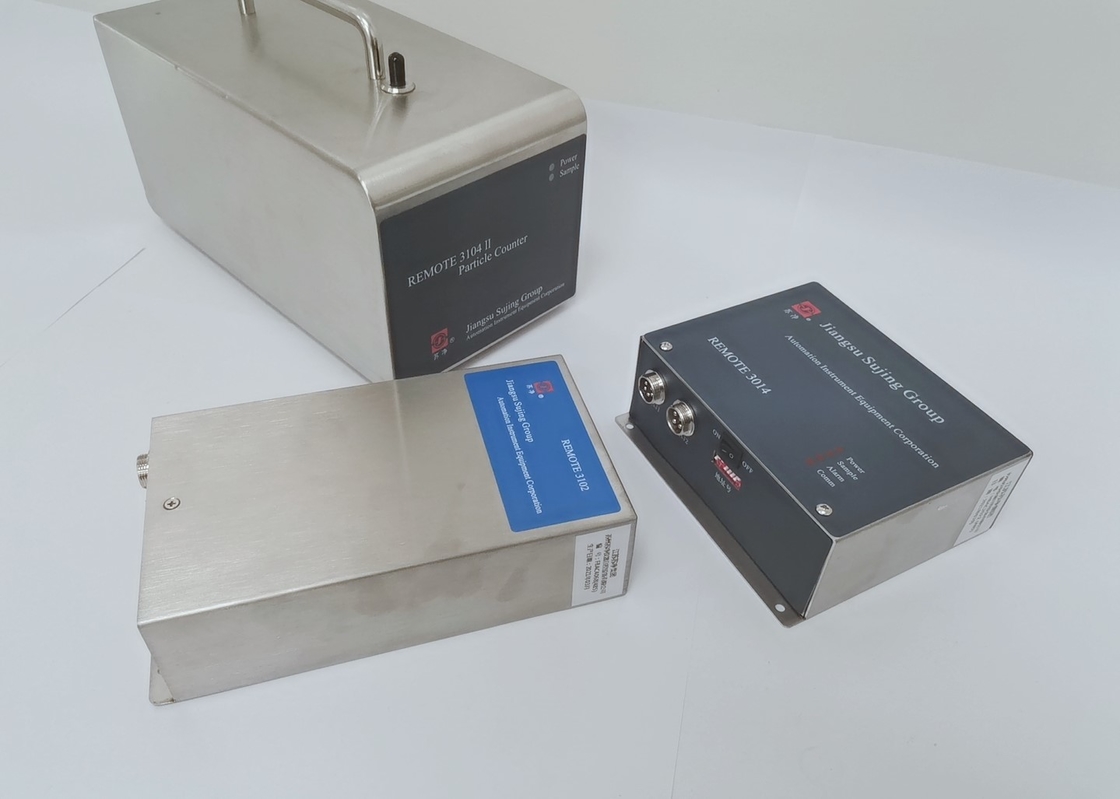

Online Monitoring System Continuous Particle Counter 28.3LPM DC24V
The system can automatically trigger the sound and light alarm and inform the relevant personnel to deal with it, so as to help ensure that the state of the particles in the key monitored environment is in a normal state and ensure the smooth progress of production.
Feature of online particle counter
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
7. Complies with all requirements of ISO 21501-4
8.1 Year warranty time
Application of online particle counter
REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
