Environment Monitoring System Online Particle Counter 1cfm Or 0.1cfm

Basic Information
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Environment Monitoring System Online Particle Counter Detect Class: ISO Class 5-9 (EU GMP Grade A-D)
Two Size Channels: 0.5 & 5.0 Micron Sensitivity Flow Rate: 1cfm, Or 0.1cfm
Sensor: Light Scattering Standard: ISO 21501-4
High Light:

1cfm Online Particle Monitoring System


Light Scattering Online Particle Counter


0.1cfm Online Particle Monitoring System

Product Description

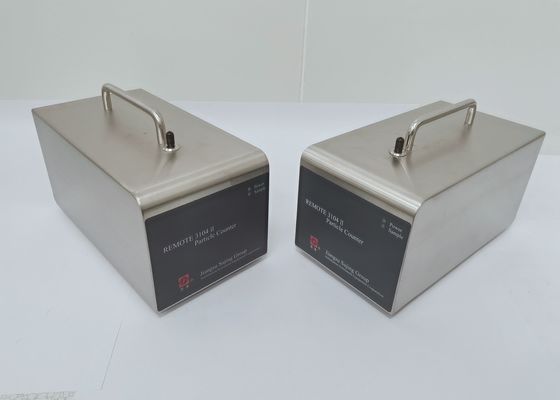

Environment Monitoring System Online Particle Counter


online particle counter for measuring the volume of air inside the clean environment unit size and number of dust particles, can be directly detected cleanliness rating for 300000-100 clean environment. Instrument uses a semiconductor laser light source, built-in high-volume sampling pump, online testing (continuous 24hours × 7day operation), in line with the new version of GMP, ISO14644, JJF1190-2008 Particle Counter standards. Signal transmission distance up to 1.2km, file size can be set for each particle number limit, limit alarm.


Feature of online particle counter

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate:   28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors

7. Complies with all requirements of ISO 21501-4

8.1 Year warranty time


Application of online particle counter

  • Filter Testing
  • Continuous Particle Contamination Monitoring



28.3LPM (1.0CFM) built-in pump


Environment Monitoring System Online Particle Counter 1cfm Or 0.1cfm 0


Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA



Environment Monitoring System Online Particle Counter 1cfm Or 0.1cfm 1
