Laser Diode Dust Particle Counter 0.1CFM For Air Monitoring

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

Laser Diode Dust Particle Counter 0.1CFM For Air Monitoring

Laser Diode Dust Particle Counter 0.1CFM For Air Monitoring
Laser Diode Dust Particle Counter 0.1CFM For Air Monitoring

Large Image :  Laser Diode Dust Particle Counter 0.1CFM For Air Monitoring

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-3016HW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: EXWUSD4000/unit
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-3016HW Dust Particle Counter 0.1CFM For Air Monitoring Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 0.1cfm Light Source: Laser Diode
Warranty Time: 1 Year Weight: 1kg
High Light:

Touch Screen Dust Particle Counter

,

0.1CFM Dust Particle Counter

,

Laser Diode Dust Particle Measurement

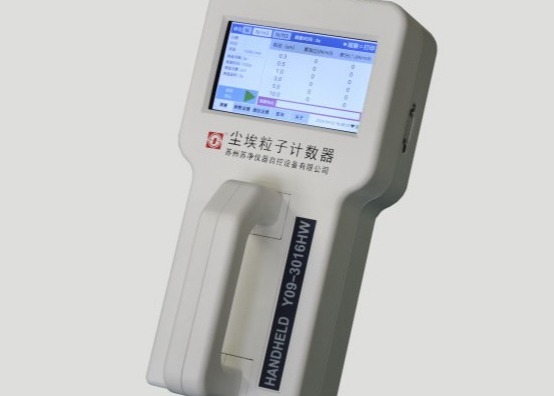

Y09-3016HW Dust Particle Counter 0.1CFM For Air Monitoring



Y09-3016HW Dust Particle Counter 0.1CFM For Air Monitoring is an instrument for measuring the number and particle size distribution of dust particles per unit volume in clean environment. It can be widely used in pharmaceutical inspection offices, blood centers, epidemic prevention stations, CDC, quality supervision offices and other authoritative institutions, electronic industry, pharmaceutical workshops, semiconductor, optical or precision machining, plastic, spray paint, hospitals, environmental protection, inspection offices and other production enterprises and scientific research departments.



Y09-3016HW Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.



Now it is easy to carry a particle counter right to the point of interest and obtain accurate results–results you can immediately print or store to computer. The large color LCD display lets you see the data easily and err-free.

Laser Diode Dust Particle Counter 0.1CFM For Air Monitoring 0



The specification of Y09-310HW air particle counter

Outside Dim 245*128*66 mm3
Display 4.3inch Touch Screen
Weight 1kg
Power Source DC16.8V
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Class ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 4hours
Location Labels 0-999
Data Storage 100000 Samples (Wifi)
Environmental 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa



The Feature of Y09-310HW air particle counter

1. Simultaneously sizes and counts particles in six fixed channels

2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm 3.0.1CFM(2.83L/min) sample flow rate

4. 4.3 inch color touch screen display 5.External printer optional 6.One year warranty Company Information
