Electronic Industry Laser Air Particle Counter Y09-5100

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-5100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Y09-5100 Laser Particle Counter In Electronic Industry Size Channel: 0.5, 1, 3, 5, 10,25 μm
Flow Rate: 100LPM Material: SUS316L Stainless Steel
Maximum Rated Particle Concentration: ISO14644-1:2015/GMP:2015 Zero Count: Zero Count
High Light:

Zero Count Laser Air Particle Counter


100LPM Laser Air Particle Counter


SUS316L Laser Air Particle Counter

Product Description

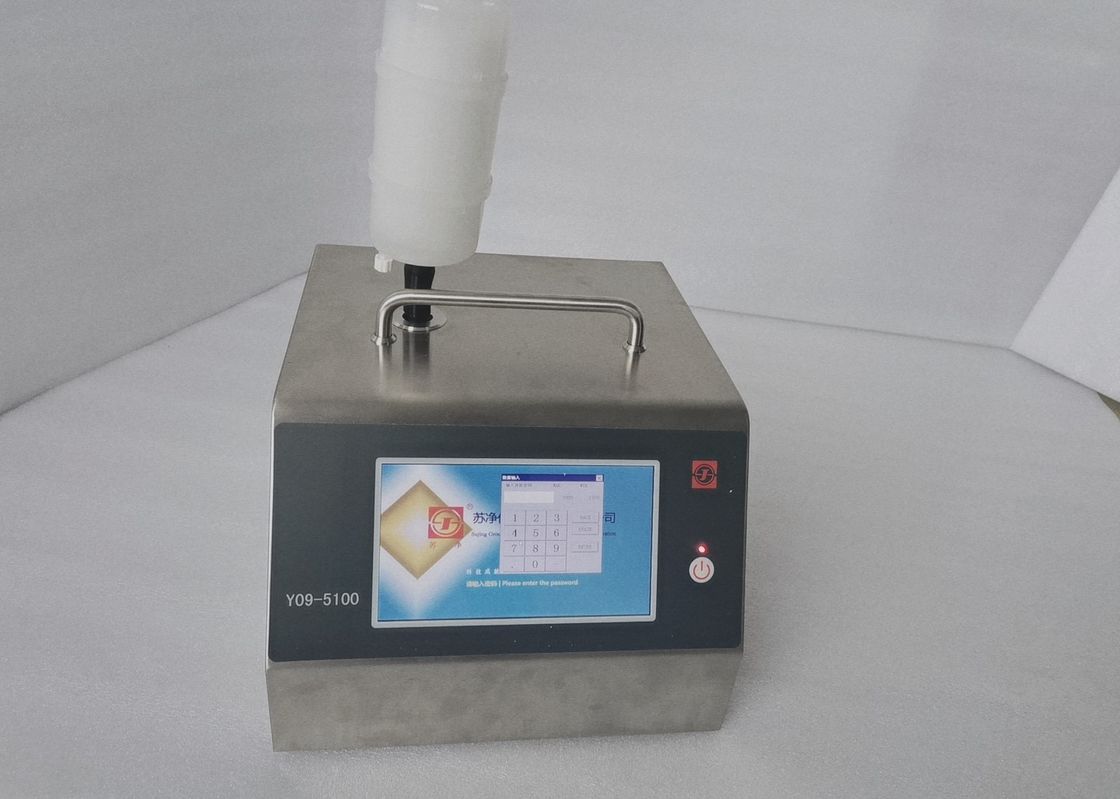

Y09-5100 Laser Particle Counter In Electronic Industry


Feature of particle counter


• 0.5µm to 25µm sensitivity
• Big Flow Rate:100L/min
• Simultaneous Display of up to 6 Particle Sizes
• Secure Data Transfer via USB Flash Drive
• Extreme Life Laser Diode Technology
• Thermal Printer
• Stainless Steel Construction
• Multiple Communication Interfaces - USB, RS-485, Ethernet and USB Flash Drive
•7-inch Color TFT Touch Screen Display
• 20000-record Data Storage Memory
• User-Definable Printouts
• Report Wizard for Cleanroom Pass/Fail Reports: FS-209E, ISO-14644-1
• Multiple-language Support: English, Chinese, or others.Support language customization


Specification of particle counter

Model Y09-5100
Outside Dim 268×192×292(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.5, 1, 3, 5, 10, 25μm
Flow Rate 100L/min
Sample Time 6~999999s(Selectable)
Zero Count ≤10min
Hold Time 0-9999s
Delay Time 5-999s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Environmental Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015


Application of air particle counter

  • Clean room cleanliness detection
  • Pharmacy or electronic industry routin inspection
  • High concentration aerosol measurement
  • Airborne particle measurement
  • Filter leakage test
