| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-5100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Large Flow Rate Six Channels Portable Air Particle Counter | Size Channel: | 0.5, 1, 3, 5, 10,25 μm |
|---|---|---|---|
| Flow Rate: | 100LPM | Max.Consumption: | 80W |
| Outside Dim: | 268×192×292(mm3) | Material: | SUS316L Stainless Steel |
| High Light: | Y09-5100 Portable Particle Counter,80W Portable Air Particle Counter,100LPM Portable Air Particle Counter |
||

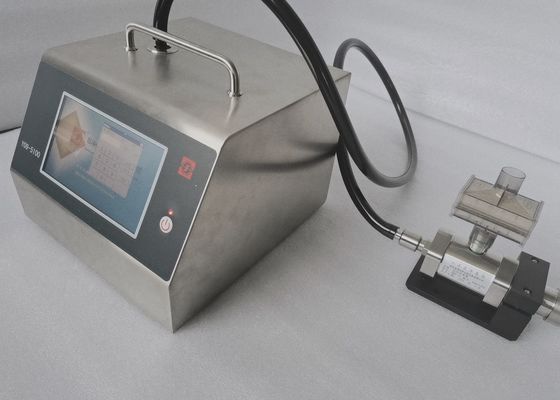

Large Flow Rate Six Channels Portable Air Particle Counter
They can store up to 20000records of particle count data from up to 6 particle channels and the configurable recipe database can store up to 50 recipes for sampling and reports. All data can be quickly and reliably transferred to a computer.
Data transfer to a USB Flash Drive can be accomplished by using the software.Flexible communication with these instruments is made possible by the integrated Ethernet, RS-485, USB and WIFI.Y09-5100 are designed, manufactured and calibrated to ISO14644 to ensure particle counting accuracy
Specification of particle counter
| Model | Y09-5100 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 100L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
Application of air particle counter
