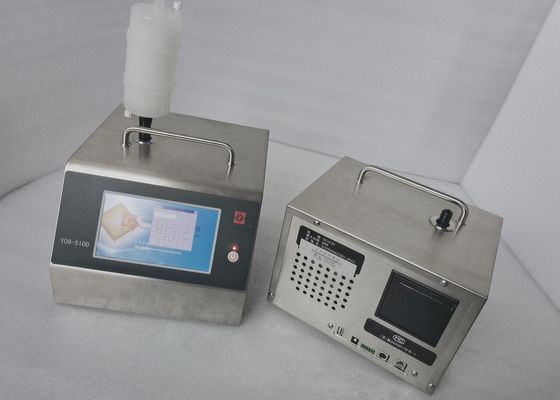

Cleanliness Detection Airborne Particle Counter Y09-5100 SUS316L

Cleanliness Detection Airborne Particle Counter Y09-5100 SUS316L
Cleanliness Detection Airborne Particle Counter Y09-5100 SUS316L

Large Image :  Cleanliness Detection Airborne Particle Counter Y09-5100 SUS316L

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-5100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-5100 Air Particle Counter Cleanliness Detection Size Channel: 0.5, 1, 3, 5, 10,25 μm
Flow Rate: 100LPM Warranty Time: 1 Year
Max.Consumption: 80W Outside Dim: 268×192×292(mm3)
High Light:

Cleanliness Detection Airborne Particle Counter

,

SUS316L Airborne Particle Counter

,

80W Airborne Particle Counter

Y09-5100 Air Particle Counter Cleanliness Detection



The Model Y09-5100 airborne particles counter ncorporates our extreme life laser diode technology sensor to produce the industry’s longest laser diode life .Using a new, lighter extended-life battery and external AC adapter, the Y09-5100 is even more portable.



Specification of particle counter

Model Y09-5100
Outside Dim 268×192×292(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.5, 1, 3, 5, 10, 25μm
Flow Rate 100L/min
Sample Time 6~999999s(Selectable)
Zero Count ≤10min
Hold Time 0-9999s
Delay Time 5-999s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Environmental Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015



Application of air particle counter

  • Clean room cleanliness detection
  • Pharmacy or electronic industry routin inspection
  • High concentration aerosol measurement
  • Airborne particle measurement
  • Filter leakage test













Cleanliness Detection Airborne Particle Counter Y09-5100 SUS316L 0
