Lab Pharmaceutical Factory Air Quality Particle Counter 100LPM 80W
|
Lab Pharmaceutical Factory Air Quality Particle Counter 100LPM 80W
| Brand Name: | Sujing |
| Model Number: | Y09-5100 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Portable Air Particle Counter Lab Pharmaceutical Factory
Size Channel:
0.5, 1, 3, 5, 10,25 μm
Flow Rate:
100LPM
Material:
SUS316L Stainless Steel
Maximum Rated Particle Concentration:
ISO14644-1:2015/GMP:2015
Zero Count:
≤10min
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
air quality particle counter 100LPM
,7 inch cleanroom particle counter
,80W air quality particle counter
Product Description

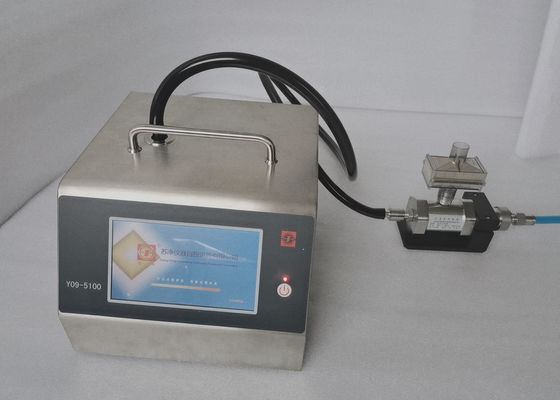

Portable Air Particle Counter Lab Pharmaceutical Factory
The real-time display of particle data of 0.5, 1.0, 3.0, 5.0 10 and 25μm 6 channels can be switched to display the actual particle number or particle concentration value (1m3). The dust particle counter has built-in long-life laser diode, light collection elliptical lens and unique optical system to provide concentration measurement range.
Specification of particle counter
| Model | Y09-5100 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 100L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
Application of air particle counter
- Clean room cleanliness detection
- Pharmacy or electronic industry routin inspection
- High concentration aerosol measurement
- Airborne particle measurement
- Filter leakage test
