Laser Portable Air Particle Counter 80W For Pharma Cleanroom Y09-350

Laser Portable Air Particle Counter 80W For Pharma Cleanroom Y09-350

Brand Name: SUJING
Model Number: Y09-350
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Place of Origin:
China
Name:
Y09-350 Portable Laser Air Particle Counter For Pharma Cleanroom
Size Channel:
0.3,0.5, 1, 3, 5, 10 μm
Flow Rate:
50LPM
Zero Count:
≤10min
Maximum Rated Particle Concentration:
35000 Particles/L
Warranty Time:
1 Year
Packaging Details:
Carton
Supply Ability:
800/per month
Highlight:

Portable Air Particle Counter 80W

,

Pharma Cleanroom Air Particle Counter

,

50LPM Laser Particle Counter

Product Description

Y09-350 Portable Laser Air Particle Counter For Pharma Cleanroom



The dirt particles in the air have the function to scatter the incident light. The density of scattered light is related to grain size. The air containing dirt particles is sucked in from sampling port of the sensors. When it passes through the photoactive area, the dirt particles are shined by the light to scatter optical pulses signal with certain proportion to particle size. The signal is received by photosensor and is converted to corresponding electric pulse signal and then is amplified. By counting the electric pulse in one detection cycle, the quantity of dirt particles in the detected air with unit volume is obtained. This is also the particle concentration.



Y09-350 laser dust particle counter (50L/min) is used to measure and analyze the size and quantity of dust particles in a unit volume of air in a clean environment, and is a testing instrument to determine the cleanliness level of the clean environment according to the standard. Dust particle counters are widely used in clean workshop inspections in enterprises such as medicine and hygiene, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and so on.



 Specification of air particle counter

Model Y09-350
Outside Dim 268×192×292(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.3,0.5, 1, 3, 5, 10μm
Flow Rate 50L/min
Zero Count ≤10min
Hold Time 0-9999s
Delay Time 5-999s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015
Warranty Time 1 Year

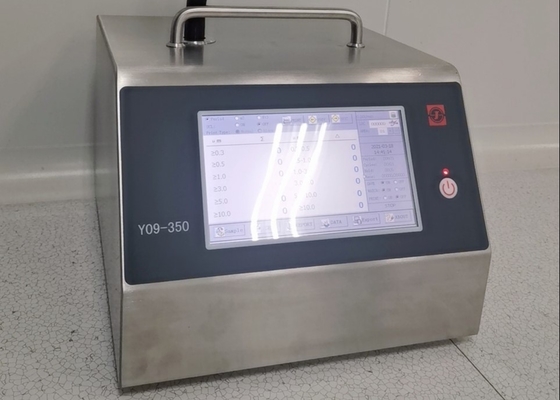

Picture of Y09-350 Laser Particle Counter
