Light Source Handheld Particle Counter For Cleanroom Monitoring

Light Source Handheld Particle Counter For Cleanroom Monitoring
Light Source Handheld Particle Counter For Cleanroom Monitoring Light Source Handheld Particle Counter For Cleanroom Monitoring

Large Image :  Light Source Handheld Particle Counter For Cleanroom Monitoring

Product Details:
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-3016
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Light Source Handheld Particle Counter Cleanroom Monitoring Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 0.1CFM Alarm: ISO14644-1:2015/GMP:2015
Warranty Time: 1 Year Environmental: 10degrees Celsius-30degrees Celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
High Light:

2.83L/min Handheld Particle Counter

,

Y09-3016 Handheld Particle Counter

,

0.1CFM Handheld Particle Counter

Light Source Handheld Particle Counter Cleanroom Monitoring



Particle counter works on the principal of either lightscattering or lightblocking. An aerosol stream is drawn through achamber with a lightsource (either Laser Based Light or WhiteLight). When aparticle is illuminated by this light beam, the light is redirectedorabsorbed. Light scattered by a single particle inaspecificdirection in relation to the original direction hasauniquesignature which relates to the size of the particle.This allows for sizing and counting of individual particles.



The parameter of air particle counter

Model Y09-3016
Outside Dim 300*360*126 mm3(Wide*Deep*High)
Display LCD
Weight 0.7kg
Battery (Lithium Ion Battery),7.2V,2200mAh
Power Source Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Alarm ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 5.5 hours
output RS-232 to pc or printer via optional cable
Location Labels 0-999
Data Storage 1000 Samples (With PC Software)
Environmental 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component External printer



Features of Light Source Handheld Particle Counter Cleanroom Monitoring

  • 0.3 - 25 μm
  • 0.1 CFM (2.83LPM) Flow Rate
  • View 6 Particle Sizes Simultaneously
  • Designed for ISO 21501-4 Compliance: Unit-to-Unit Accuracy and Repeatability
  • Bright 3.5" (8.89 cm) Color Touch Screen Display
  • Removable / Rechargeable Li-Ion Battery
  • Large Memory for Storing Data (1000 Samples)
  • Temperature / Relative Humidity Probe Included
  • Internal Audible Alarm
  • Lightweight

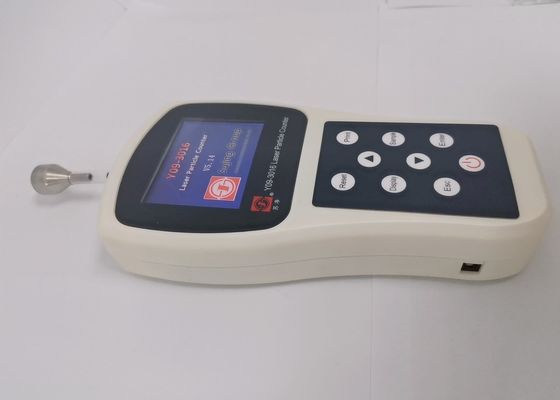

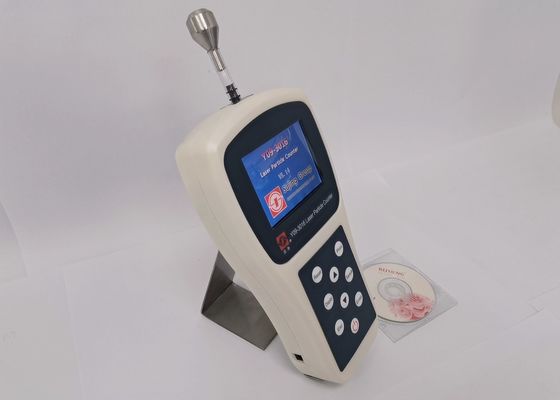

The picture of Light Source Handheld Particle Counter Cleanroom Monitoring
