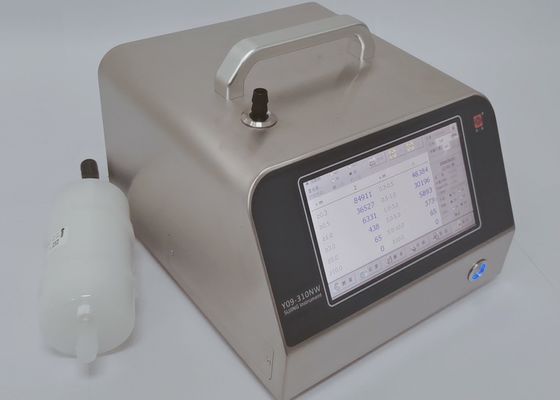

UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area

UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area
UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area

Large Image :  UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area

Product Details:
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Y09-310NW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 500unit/per month
Detailed Product Description
Size Channels: 0.3, 0.5, 1, 3, 5, 10 μm Operating Time: More Than 5.5 Hours
Class: ISO14644-1:2015 Maximum Rated Particle Concentration: 35000 Particles/L
Sensor Type: Laser Scattering Sensor Warranty Time: 1 Year
High Light:

0.3 Sensitivity Air Particle Counter

,

UCL Calculation Air Particle Counter

,

Food Processing Area Air Particle Counter

Air Particle Counter 0.3 Sensitivity For Food Processing Area



The Air particle Counter Meet the requirements of ISO14644-1:2015,and adopt the 7 inch touch screen and built in printer!



The specification of portable particle counter



Outside Dim 245*268*160 (mm3); (Wide*Deep*High)
Display 7 inch touch screen
Weight 3.5Kg
Max. Consumption 80W
Power Source DC16.8V built-in Lithium Battery; AC 220V ± 10%
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Calculation 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet)
Flow Rate 28.3L/min (Imported Pump)
Sample Time 6s---999999s (Selectable)
Cycles 0-99
Hold Time 0-9999s
Delay Time 5-999s
Zero Court <=10min
Location 1-99
Alarm ISO Class
Printer Built-in Thermal Printer
Data Storage 20000Samples /300 Samples of UCL (With PC Software)
Light Source Laser Diode (30,000 hours Mean Time Between Failures)
Counting efficiency 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa



UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area 0





SUJING



UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area 1





UCL Calculation Air Particle Counter 0.3 Sensitivity For Food Processing Area 2
