Wind Direction Display Air Flow Meter Hood GMP 0.01Pa

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: FLY-I
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Air Flow Meter Hood Display Wind Direction For GMP Air Volume Resolution: 1 M3/h
Memory Apace: 2000 Groups Display Screen: 5 LCD Touch-screen Display
Shell: ABS Engineering Plastic Warranty Time: 1 Year
High Light:

GMP Air Flow Meter Hood


1m3/h Air Flow Meter Hood


0.01Pa Air Flow Meter Hood

Product Description

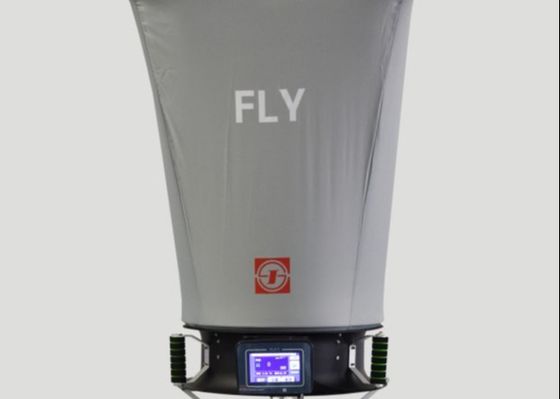

Air Flow Meter Hood Display Wind Direction For GMP

The  Air volume meter is an instrument used to measure the air volume flowing through air-outlet, diffusers and grilles. It is easy to operate; it has a high accuracy and reliability which ensures the measurement is accurate, and the results can be saved. The different sizes for its cover, random accessories, calibration certification and carrying case can be different according to the Air inlet size.


Specification of airflow capture hood


Prameter FLY-1B (W Sensor) FLY-1 (L Sensor)
Air Volume Range

Supply air:80 ~ 4000 m3/h

Return air:80 ~ 1000 m3/h

Supply air:150 ~ 4000 m3/h

Return air:150 ~ 900 m3/h

Accuracy. ±3% reading±10 m3/h ±5% FS
Resolution 1 m3/h
Differential Pressure Range -100 ~ +450 Pa -5 ~ +125 Pa

0 ~ 100 Pa,1.0% FS

100 ~ 450 Pa,3.5% reading

±1.5% FS
Resolution 0.01Pa
Temperature Range 0 ~ +60
Accuracy. ±2% FS
Resolution 0.1
Memory Apace / 2000 groups

Configuration information of airflow capture hood

Display screen .5 LCD touch-screen display
Shell ABS engineering plastic
Power supply Rechargeable lithium battery7.4V,2AH
Usage environment Neutral gas
Usage temperature 0 ~ +60 °C
Operating language English
Printer A portable wireless bluetooth printer



Features of airflow capture hood

  • Automatically display the wind direction: inlet flow or outlet flow;
  • Conversion of the displayed units between m3/h and ft3/s;
  • Back-lit display is easy to read in poor lighting conditions
  • Compact packing makes the shipment convenient
