| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | FLY-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | FLY-IB Touch-Screen Display Air Flow Capture Hood | Air Volume Resolution: | 1 M3/h |
|---|---|---|---|
| Memory Apace: | 2000 Groups | Display Screen: | 5 LCD Touch-screen Display |
| Shell: | ABS Engineering Plastic | Warranty Time: | 1 Year |
| Usage Temperature: | 0 ~ +60 °C | ||
| High Light: | HVAC Air Capture Hood,1m3/H Air flow Hood,2AH Air flow Hood |
||

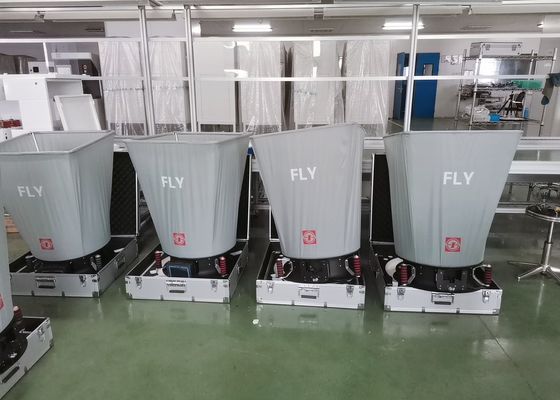

FLY-IB Touch-Screen Display Air Flow Capture Hood
The airflow capture hood is widely used to directly detect air flow of registers, diffusers, grills and duct in HVAC and purification industries. It adopts international advanced technologies. In order to provide reliable guarantee for the user to measure air flow straightway, every product will be strictly calibrated using air tunnel device of orifice plate type at multi points before it leaves our factory
Features of airflow capture hood
Specification of airflow capture hood
| Prameter | FLY-1B (W Sensor) | FLY-1 (L Sensor) | ||
| Air Volume | Range |
Supply air:80 ~ 4000 m3/h Return air:80 ~ 1000 m3/h |
Supply air:150 ~ 4000 m3/h Return air:150 ~ 900 m3/h |
|
| Accuracy. | ±3% reading±10 m3/h | ±5% FS | ||
| Resolution | 1 m3/h | |||
| Differential Pressure | Range | -100 ~ +450 Pa | -5 ~ +125 Pa | |
| Accuracy. |
0 ~ 100 Pa,1.0% FS 100 ~ 450 Pa,3.5% reading |
±1.5% FS | ||
| Resolution | 0.01Pa | |||
| Temperature | Range | 0 ~ +60 ℃ | ||
| Accuracy. | ±2% FS | |||
| Resolution | 0.1℃ | |||
| Memory Apace | / | 2000 groups | ||
Configuration information of airflow capture hood
| Display screen | .5 LCD touch-screen display |
| Shell | ABS engineering plastic |
| Power supply | Rechargeable lithium battery7.4V,2AH |
| Usage environment | Neutral gas |
| Usage temperature | 0 ~ +60 °C |
| Operating language | English |
| Printer | A portable wireless bluetooth printer |
Appearance and structure design of airflow capture hood
1. New 5-inch color touch, visual display, easy operation.
2. ABS engineering plastic shell, lightweight, easy to carry.
3. Host is removable for easily recharging.
Function design of airflow capture hood
1. New differential pressure sensor can measure the negative differential pressure, achieve two-way air flow test of the supply air and the return air.
2. User can select whether the atmospheric pressure and temperature are compensated automatically for the measured air flow value or not.
3. Built-in Bluetooth module can achieve wireless print, measure and record simultaneously.
4. The massive historical storage data can be queried, deleted and printed by Bluetooth printer
1. Handle 2.LCD Display 3.Base 4. Bluetooth light indictor 5. Flow sensing grid 6. Sensor
7.Nozzle 8. Host bracket 9. Host 10. Temperature and humidity sensor probe
11. Support Fixing 12.Fast measure button 13. Power Switch 14. Fix Flute of air sampler
15. Support pole 16.Fabric hood 17. Frame
