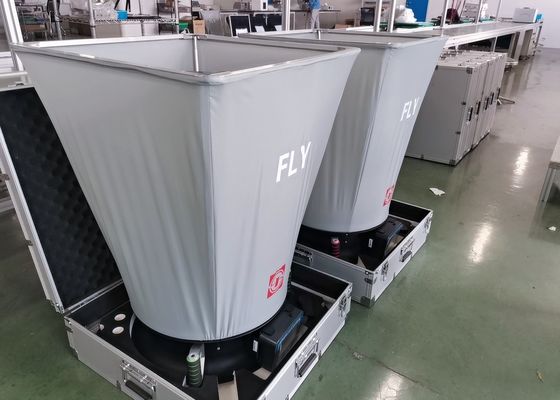

Removable Host FLY-IB Airflow Capture Hood With ABS Engineering Plastic Shell
|
Removable Host FLY-IB Airflow Capture Hood With ABS Engineering Plastic Shell
| Brand Name: | Sujing |
| Model Number: | FLY-I |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
1m3/h FLY-IB Airflow Capture Hood
,Removable Host ABS Airflow Capture Hood
,0.01Pa Air Flow Meter Hood
FLY-IB Air Flow Capture Hood With Removable Host
- used to measure both supply and return air volume
- air volume calibration at various point by class 0.5 standard air inlet device before delivery
- equiped with the biggest 2.2m height mobile and adjustable support and 1.0m height air hood
- customized air volumer size,the biggest air hood size 1550*1550mm2 and the biggest total height more than 4m
Features of airflow capture hood
- Ergonomic design and ultra light weight for easy one person operation
- Detachable digital manometer for use in other applications with Pitot, air flow, temperature, velocity matrix, or relative humidity probes
- Back pressure compensated
- Multiple hood sizes available
- Bio-safety hood kit available
Specification of airflow capture hood
| Prameter | FLY-1B (W Sensor) | FLY-1 (L Sensor) | ||
| Air Volume | Range |
Supply air:80 ~ 4000 m3/h Return air:80 ~ 1000 m3/h |
Supply air:150 ~ 4000 m3/h Return air:150 ~ 900 m3/h |
|
| Accuracy. | ±3% reading±10 m3/h | ±5% FS | ||
| Resolution | 1 m3/h | |||
| Differential Pressure | Range | -100 ~ +450 Pa | -5 ~ +125 Pa | |
| Accuracy. |
0 ~ 100 Pa,1.0% FS 100 ~ 450 Pa,3.5% reading |
±1.5% FS | ||
| Resolution | 0.01Pa | |||
| Temperature | Range | 0 ~ +60 ℃ | ||
| Accuracy. | ±2% FS | |||
| Resolution | 0.1℃ | |||
| Memory Apace | / | 2000 groups | ||
Configuration information of airflow capture hood
| Display screen | .5 LCD touch-screen display |
| Shell | ABS engineering plastic |
| Power supply | Rechargeable lithium battery7.4V,2AH |
| Usage environment | Neutral gas |
| Usage temperature | 0 ~ +60 °C |
| Operating language | English |
| Printer | A portable wireless bluetooth printer |
Appearance and structure design of airflow capture hood
1. New 5-inch color touch, visual display, easy operation.
2. ABS engineering plastic shell, lightweight, easy to carry.
3. Host is removable for easily recharging.
Function design of airflow capture hood
1. New differential pressure sensor can measure the negative differential pressure, achieve two-way air flow test of the supply air and the return air.
2. User can select whether the atmospheric pressure and temperature are compensated automatically for the measured air flow value or not.
3. Built-in Bluetooth module can achieve wireless print, measure and record simultaneously.
4. The massive historical storage data can be queried, deleted and printed by Bluetooth printer
1. Handle 2.LCD Display 3.Base 4. Bluetooth light indictor 5. Flow sensing grid 6. Sensor
7.Nozzle 8. Host bracket 9. Host 10. Temperature and humidity sensor probe
11. Support Fixing 12.Fast measure button 13. Power Switch 14. Fix Flute of air sampler
15. Support pole 16.Fabric hood 17. Frame
