|Name:||FLY-IB Air Flow Capture Hood Used In Pharma Cleanroom||Display Screen:||5 LCD Touch-screen Display|
|Usage Temperature:||0 ~ +60 °C||Printer:||A Portable Wireless Bluetooth Printer|
|Usage Environment:||Neutral Gas||Power Supply:||Rechargeable Lithium Battery7.4V,2AH|
2AH FLY-IB Air Flow Capture Hood,
Pharma Cleanroom Air Flow Capture Hood,
0.01Pa W Sensor Air Flow Capture Hood

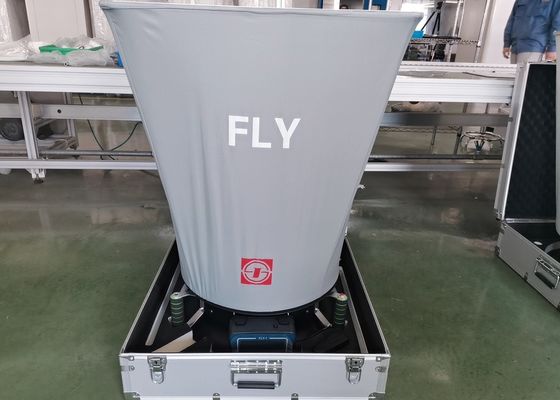

FLY-IB Air Flow Capture Hood Used In Pharma Cleanroom
FLY series Air Flow Capture Hood adopts the pitot tube principle. It can automatically measure air flow at multi points many times. Its average amount of air volumetric flow measured is accurate, fast and simple. It is widely used to directly detect air flow of registers, diffusers, grills and duct in HVAC and purification industries. It adopts international advanced technologies. In order to provide reliable guarantee for the user to measure air flow straightway, every product will be strictly calibrated using air tunnel device of orifice plate type at multi points before it leaves our factory.
Specification of airflow capture hood
|Prameter||FLY-1B (W Sensor)||FLY-1 (L Sensor)|
Supply air:80 ~ 4000 m3/h
Return air:80 ~ 1000 m3/h
Supply air:150 ~ 4000 m3/h
Return air:150 ~ 900 m3/h
|Accuracy.||±3% reading±10 m3/h||±5% FS|
|Differential Pressure||Range||-100 ~ +450 Pa||-5 ~ +125 Pa|
0 ~ 100 Pa,1.0% FS
100 ~ 450 Pa,3.5% reading
|Temperature||Range||0 ~ +60 ℃|
|Memory Apace||/||2000 groups|
Configuration information of airflow capture hood
|Display screen||.5 LCD touch-screen display|
|Shell||ABS engineering plastic|
|Power supply||Rechargeable lithium battery7.4V,2AH|
|Usage environment||Neutral gas|
|Usage temperature||0 ~ +60 °C|
|Printer||A portable wireless bluetooth printer|
Appearance and structure design of airflow capture hood
1. New 5-inch color touch, visual display, easy operation.
2. ABS engineering plastic shell, lightweight, easy to carry.
3. Host is removable for easily recharging.
Function design of airflow capture hood
1. New differential pressure sensor can measure the negative differential pressure, achieve two-way air flow test of the supply air and the return air.
2. User can select whether the atmospheric pressure and temperature are compensated automatically for the measured air flow value or not.
3. Built-in Bluetooth module can achieve wireless print, measure and record simultaneously.
4. The massive historical storage data can be queried, deleted and printed by Bluetooth printer
1. Handle 2.LCD Display 3.Base 4. Bluetooth light indictor 5. Flow sensing grid 6. Sensor
7.Nozzle 8. Host bracket 9. Host 10. Temperature and humidity sensor probe
11. Support Fixing 12.Fast measure button 13. Power Switch 14. Fix Flute of air sampler
15. Support pole 16.Fabric hood 17. Frame
