| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | FLY-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Air Flow Meter Hood Display Wind Direction For GMP | Air Volume Resolution: | 1 M3/h |
|---|---|---|---|
| Memory Apace: | 2000 Groups | Display Screen: | 5 LCD Touch-screen Display |
| Shell: | ABS Engineering Plastic | Warranty Time: | 1 Year |
| Usage Temperature: | 0 ~ +60 °C | ||
| High Light: | ABS engineering plastic Air Capture Hood,Air Capture Hood 1m3/H,FLY-1 Neutral gas Air Capture Hood |
||

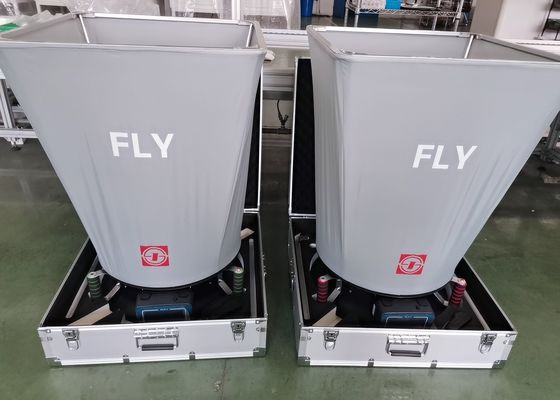

Lab Instrument Air Flow Capture Hood Analytical Instrument
Air Capture Hood provides quick and accurate direct air volume readings at diffusers and grilles, enables easy one-person operation and offers various innovative accessories to increase your efficiency on the job. The airflow capture hood maximizes worker productivity by saving you valuable time on the jobsite for ultimate profitability, while helping you create healthy and energy efficient environment. The detachable micromanometer permits more efficient use with additional measurement capability through
Features of airflow capture hood
Specification of airflow capture hood
| Prameter | FLY-1B (W Sensor) | FLY-1 (L Sensor) | ||
| Air Volume | Range |
Supply air:80 ~ 4000 m3/h Return air:80 ~ 1000 m3/h |
Supply air:150 ~ 4000 m3/h Return air:150 ~ 900 m3/h |
|
| Accuracy. | ±3% reading±10 m3/h | ±5% FS | ||
| Resolution | 1 m3/h | |||
| Differential Pressure | Range | -100 ~ +450 Pa | -5 ~ +125 Pa | |
| Accuracy. |
0 ~ 100 Pa,1.0% FS 100 ~ 450 Pa,3.5% reading |
±1.5% FS | ||
| Resolution | 0.01Pa | |||
| Temperature | Range | 0 ~ +60 ℃ | ||
| Accuracy. | ±2% FS | |||
| Resolution | 0.1℃ | |||
| Memory Apace | / | 2000 groups | ||
Configuration information of airflow capture hood
| Display screen | .5 LCD touch-screen display |
| Shell | ABS engineering plastic |
| Power supply | Rechargeable lithium battery7.4V,2AH |
| Usage environment | Neutral gas |
| Usage temperature | 0 ~ +60 °C |
| Operating language | English |
| Printer | A portable wireless bluetooth printer |
