| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | FLY-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Airflow Capture Hood Air Flow Volumer For Pharmaceutical Factory | Usage Temperature: | 0 ~ +60 °C |
|---|---|---|---|
| Printer: | A Portable Wireless Bluetooth Printer | Usage Environment: | Neutral Gas |
| Power Supply: | Rechargeable Lithium Battery7.4V,2AH | Warranty Time: | 1 Year |
| High Light: | ABS engineering plastic Air Balancing Hood,2AH Air Balancing Hood,1m3/h Air Balancing Hood |
||

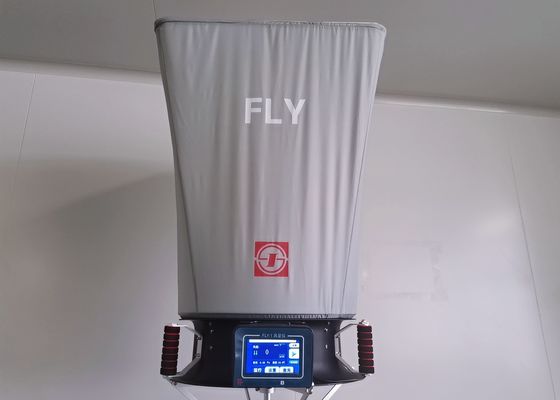

Customizable Size Air Capture Hood Air Balancing Hood
Capture Hood is the ideal way to measure very low volumetric flow. This lightweight instrument is great for residential or light commercial use. The compact size allows them to be used where full size hoods would not fit such as over bathroom stalls or filing cabinets.
Specification of airflow capture hood
| Prameter | FLY-1B (W Sensor) | FLY-1 (L Sensor) | ||
| Air Volume | Range |
Supply air:80 ~ 4000 m3/h Return air:80 ~ 1000 m3/h |
Supply air:150 ~ 4000 m3/h Return air:150 ~ 900 m3/h |
|
| Accuracy. | ±3% reading±10 m3/h | ±5% FS | ||
| Resolution | 1 m3/h | |||
| Differential Pressure | Range | -100 ~ +450 Pa | -5 ~ +125 Pa | |
| Accuracy. |
0 ~ 100 Pa,1.0% FS 100 ~ 450 Pa,3.5% reading |
±1.5% FS | ||
| Resolution | 0.01Pa | |||
| Temperature | Range | 0 ~ +60 ℃ | ||
| Accuracy. | ±2% FS | |||
| Resolution | 0.1℃ | |||
| Memory Apace | / | 2000 groups | ||
Configuration information of airflow capture hood
| Display screen | .5 LCD touch-screen display |
| Shell | ABS engineering plastic |
| Power supply | Rechargeable lithium battery7.4V,2AH |
| Usage environment | Neutral gas |
| Usage temperature | 0 ~ +60 °C |
| Operating language | English |
| Printer | A portable wireless bluetooth printer |
Appearance and structure design of airflow capture hood

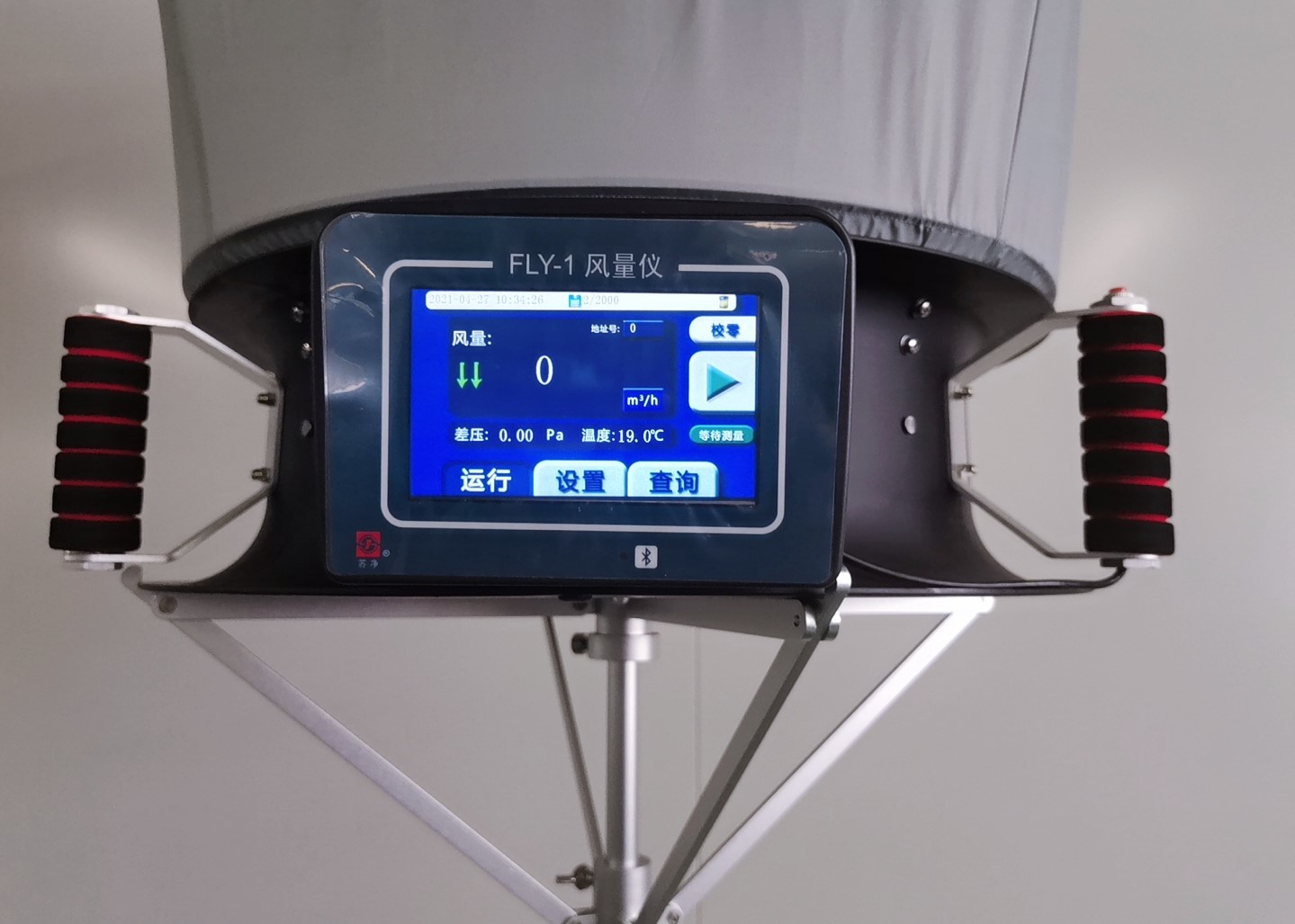

1. New 5-inch color touch, visual display, easy operation.
2. ABS engineering plastic shell, lightweight, easy to carry.
3. Host is removable for easily recharging.
1. Handle 2.LCD Display 3.Base 4. Bluetooth light indictor 5. Flow sensing grid 6. Sensor
7.Nozzle 8. Host bracket 9. Host 10. Temperature and humidity sensor probe
11. Support Fixing 12.Fast measure button 13. Power Switch 14. Fix Flute of air sampler
15. Support pole 16.Fabric hood 17. Frame
