Name: | Air Volume Meter Air Capture Hood For Air Flow Test | Display Screen: | 5 LCD Touch-screen Display |
---|---|---|---|
Usage Temperature: | 0 ~ +60 °C | Printer: | A Portable Wireless Bluetooth Printer |
Usage Environment: | Neutral Gas | Power Supply: | Rechargeable Lithium Battery7.4V,2AH |
Highlight: | 5 LCD portable Airflow Capture Hood,7.4V Airflow Capture Hood,2AH LCD Airflow Capture Hood |

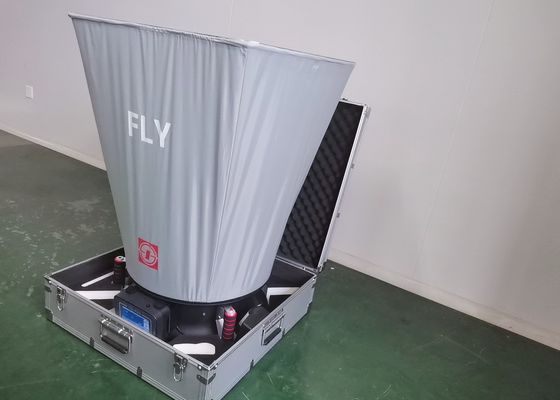

Air Volume Meter Air Capture Hood For Air Flow Test
Airflow capture hood is suitable for air volume and temperature measurement of air conditioning pipes and other ventilation places. After changing different size air volume hood, it can be used for air inlet and air outlet of any type of pipes.
Specification of airflow capture hood
Prameter | FLY-1B (W Sensor) | FLY-1 (L Sensor) | ||
Air Volume | Range |
Supply air:80 ~ 4000 m3/h Return air:80 ~ 1000 m3/h |
Supply air:150 ~ 4000 m3/h Return air:150 ~ 900 m3/h |
|
Accuracy. | ±3% reading±10 m3/h | ±5% FS | ||
Resolution | 1 m3/h | |||
Differential Pressure | Range | -100 ~ +450 Pa | -5 ~ +125 Pa | |
Accuracy. |
0 ~ 100 Pa,1.0% FS 100 ~ 450 Pa,3.5% reading |
±1.5% FS | ||
Resolution | 0.01Pa | |||
Temperature | Range | 0 ~ +60 ℃ | ||
Accuracy. | ±2% FS | |||
Resolution | 0.1℃ | |||
Memory Apace | / | 2000 groups | ||
Configuration information of airflow capture hood
Display screen | .5 LCD touch-screen display |
Shell | ABS engineering plastic |
Power supply | Rechargeable lithium battery7.4V,2AH |
Usage environment | Neutral gas |
Usage temperature | 0 ~ +60 °C |
Operating language | English |
Printer | A portable wireless bluetooth printer |
Appearance and structure design of airflow capture hood
1. New 5-inch color touch, visual display, easy operation.
2. ABS engineering plastic shell, lightweight, easy to carry.
3. Host is removable for easily recharging.
Function design of airflow capture hood
1. New differential pressure sensor can measure the negative differential pressure, achieve two-way air flow test of the supply air and the return air.
2. User can select whether the atmospheric pressure and temperature are compensated automatically for the measured air flow value or not.
3. Built-in Bluetooth module can achieve wireless print, measure and record simultaneously.
4. The massive historical storage data can be queried, deleted and printed by Bluetooth printer

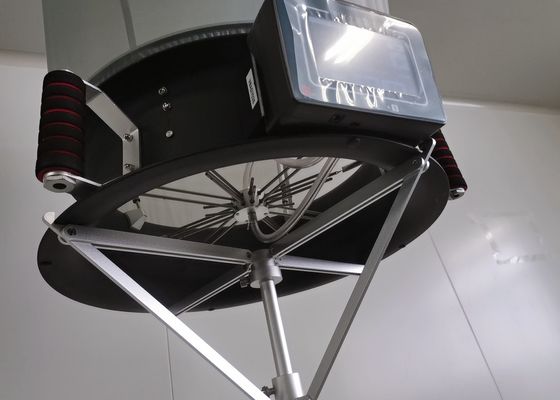

1. Handle 2.LCD Display 3.Base 4. Bluetooth light indictor 5. Flow sensing grid 6. Sensor
7.Nozzle 8. Host bracket 9. Host 10. Temperature and humidity sensor probe
11. Support Fixing 12.Fast measure button 13. Power Switch 14. Fix Flute of air sampler
15. Support pole 16.Fabric hood 17. Frame
