| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-PM |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | PM1 PM2.5 PM10 Continuous Particulate Monitor | Size Channels: | PM1.0 PM2.5 PM10 |
|---|---|---|---|
| Display: | LCD | Outside Dim: | 130*220*45(Wide*High*Deep) |
| Detection Range: | 0.1-999.9μg /m3 | Warranty Time: | 1 Year |
| High Light: | PM1 Continuous Particulate Monitor,Y09-PM Continuous Particulate Monitor,10W Continuous Particulate Monitor |
||
PM1 PM2.5 PM10 Continuous Particulate Monitor
PM1 PM2.5 PM10 Continuous Particulate Monitor is a dust detector manufactured by the principle of laser scattering and pump sampling. It mainly detects particulate matter suspended in the air, and the data output is concentration and weight mode.
The specification of air quality monitor
| Model | Y09-PM (Handheld) |
| Outside Dim | 130*220*45(Wide*High*Deep) |
| Display | LCD |
| Weight | 0.6kg |
| Maximum consumption | 10W |
| Power Source | DC8.4 V built-in Lithium Battery |
| Size channels | PM1.0 PM2.5 PM10 |
| Flow Rate | 2.83L/min (Imported Pump) |
| Sample Time | 0-999999s Selectable |
| Zero Count | <=10min |
| Location Labels | 0-999 |
| Printer | External thermal printer(optional) |
| Detection Range | 0.1-999.9μg /m3 |
| Data Storage | 1000 records |
| Light Source | Laser Diode (30000 hours mean time between failures) |
| Operating Time | 5 hours |
| Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
| Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

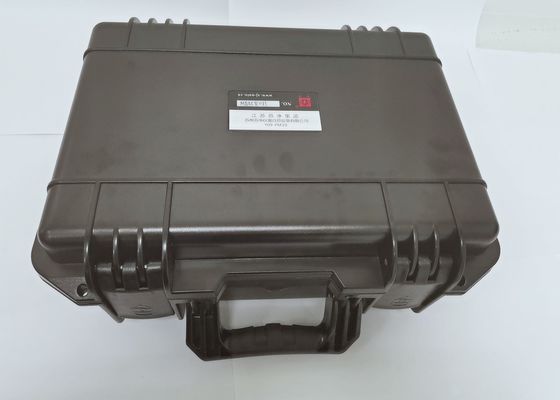

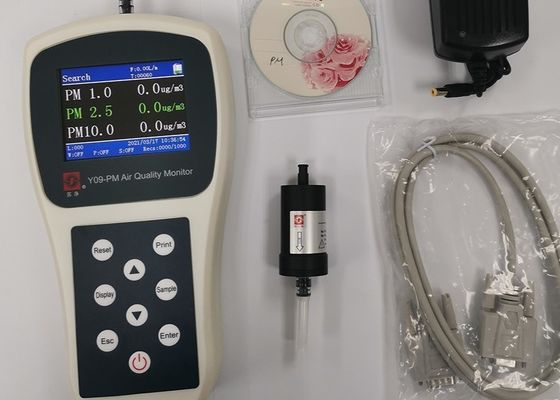

The picture of air quality monitor
