Name: | PM1 PM2.5 PM10 Particle Counter Dust Pollution Detector | Weight: | 0.6kg |
---|---|---|---|
Outside Dim: | 130*220*45(Wide*High*Deep) | Detection Range: | 0.1-999.9μg /m3 |
Zero Count: | <=10min | Printer: | External Thermal Printer(optional) |
Highlight: | PM1 air pollution measuring device,Y09-PM air pollution measuring device,10W air pollution measuring device |
PM1 PM2.5 PM10 Particle Counter Dust Pollution Detector
PM1 PM2.5 PM10 Particle Counter Dust Pollution Detector adopts Light scattering principle. When the particles go through the light sensitive area, there is luminous flux scatter with a certain proportion of particle size. The concentration of gathered particles will be tested.
The specification of air quality monitor
Model | Y09-PM (Handheld) |
Outside Dim | 130*220*45(Wide*High*Deep) |
Display | LCD |
Weight | 0.6kg |
Maximum consumption | 10W |
Power Source | DC8.4 V built-in Lithium Battery |
Size channels | PM1.0 PM2.5 PM10 |
Flow Rate | 2.83L/min (Imported Pump) |
Sample Time | 0-999999s Selectable |
Zero Count | <=10min |
Location Labels | 0-999 |
Printer | External thermal printer(optional) |
Detection Range | 0.1-999.9μg /m3 |
Data Storage | 1000 records |
Light Source | Laser Diode (30000 hours mean time between failures) |
Operating Time | 5 hours |
Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

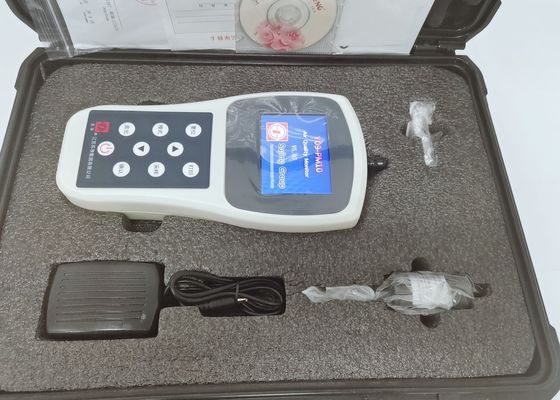

The picture of air quality monitor
