Name: | Laser Portable Air Pollution Quality Meter PM10 Monitoring | Size Channels: | PM1.0 PM2.5 PM10 |
---|---|---|---|
Weight: | 0.6kg | Outside Dim: | 130*220*45(Wide*High*Deep) |
Detection Range: | 0.1-999.9μg /m3 | Zero Count: | <=10min |
High Light: | DC8.4V Air Pollution Quality Monitor,106Kpa Air Pollution Quality Monitor,Y09-PM air quality measurement device |
Laser Portable Air Pollution Quality Meter PM10 Monitoring
This Laser Portable Air Pollution Quality Meter PM10 Monitoringis used to measure the dust concentration suspended in the air. The tester has a built-in laser dust concentration sensor that directly measures and displays the dust concentration values such as PM2.5, PM10, and TSP in the air
The specification of air quality monitor
Model | Y09-PM (Handheld) |
Outside Dim | 130*220*45(Wide*High*Deep) |
Display | LCD |
Weight | 0.6kg |
Maximum consumption | 10W |
Power Source | DC8.4 V built-in Lithium Battery |
Size channels | PM1.0 PM2.5 PM10 |
Flow Rate | 2.83L/min (Imported Pump) |
Sample Time | 0-999999s Selectable |
Zero Count | <=10min |
Location Labels | 0-999 |
Printer | External thermal printer(optional) |
Detection Range | 0.1-999.9μg /m3 |
Data Storage | 1000 records |
Light Source | Laser Diode (30000 hours mean time between failures) |
Operating Time | 5 hours |
Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

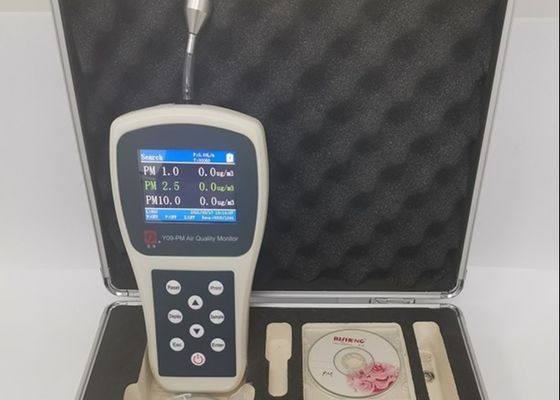

The picture of air quality monitor
